Ordr

Overview

Ordr is a leading healthcare IoT security platform that provides comprehensive visibility, security, and asset management for connected medical and IoT devices. Ordr automatically discovers and profiles every connected device, providing deep asset intelligence including device types, manufacturers, models, risk levels, and vulnerabilities – all without requiring agents or credentials.

Ordr's AI-powered platform continuously monitors device behavior, identifies anomalies, and detects threats across clinical, enterprise, and IoT environments. It provides real-time risk scoring, vulnerability management, and network segmentation guidance to protect critical infrastructure and sensitive patient data.

Xshield leverages Ordr's comprehensive API to import enriched device inventory and vulnerability data, automatically applying them as core tags, asset attributes, and properties in Xshield. This seamless integration eliminates manual tagging effort and enables you to immediately leverage Ordr's deep device intelligence for zero-trust segmentation, risk-based policies, and compliance reporting.

Prerequisites

Ordr

• An active Ordr deployment with API access enabled.
• Username and Password created in Platform API Integration in Ordr to read device inventory and vulnerability data.
• Ordr Endpoint – Base URL of your Ordr deployment (e.g., https://ordr.example.com). Must include the scheme (https://).

Xshield

• Admin role to enable the integration.

Integration

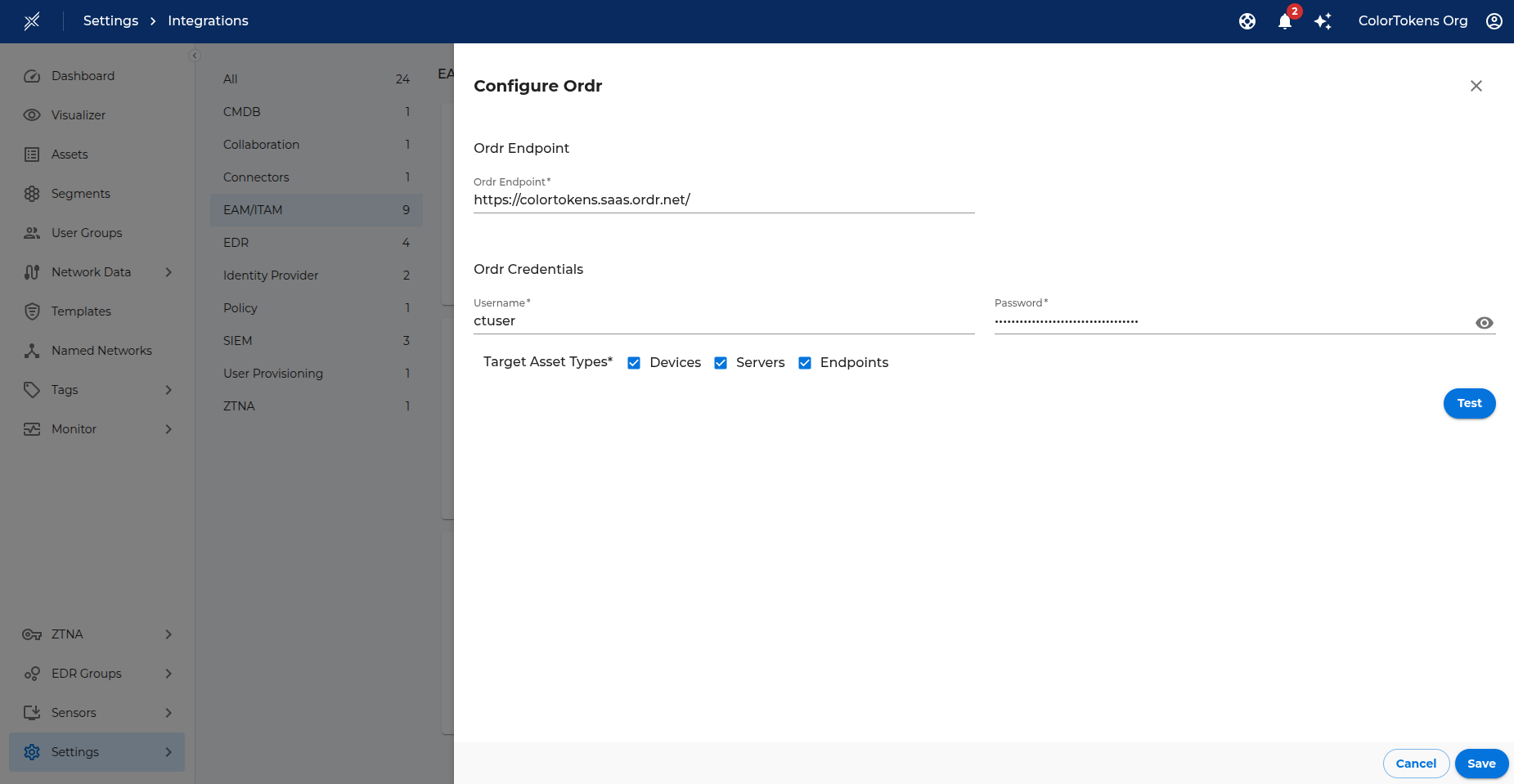

Follow the steps below to connect Ordr to Xshield:

1. Log in to Xshield and navigate to Integrations.

2. Select the EAM/ITAM category and click Activate on Ordr.

3. In the Ordr Endpoint section, enter:

   • Ordr Endpoint – Base URL of your Ordr deployment, including the scheme (e.g., https://ordr.example.com).

4. In the Ordr Credentials section, enter:

   • Username – API username from Ordr.
   • Password – API password from Ordr.

5. In the Target Asset Types section, select the types of assets for which you want to import data:

   • Devices – Import for Gatekeeper's managed & unmanaged assets.
   • Servers – Import for Server assets.
   • Endpoints – Import for Endpoints assets.

6. Click Test to validate the credentials and connectivity.

7. If the test succeeds, click Save to enable the integration.



8. A success message is logged under Monitor > Logs confirming activation.

9. Once enabled, Xshield immediately initiates a sync job to fetch asset information from Ordr. After the initial sync completes, Xshield schedules a job every 24 hours to update asset information from Ordr.

Attribute Mapping

Note: Only devices whose MAC address matches an existing Xshield asset are updated.

The tables below show how Ordr attributes are mapped inside Xshield for both managed assets and unmanaged devices.

Managed Assets

Core Tags (for segments)

These core tags can be used for searching and creating segments.

Ordr Attribute	Xshield Core Tag
Group	Category
MfgName/LongMfgName	Manufacturer
ModelNameNo	Model
DeviceLocation	Location
Profile	Subcategory
EndpointType	Role

Asset Attributes (searchable)

Ordr Attribute	Xshield Asset Attribute
SerialNo	Serial Number
OsType	OS Name
OsVersion	Kernel Version

Properties (for tag rules)

These properties can be used to create tag rules.

Ordr Attribute	Xshield Property	Value Format
Criticality	Ordr Criticality	String value
DeviceType	Ordr Device Type	String value
RiskState	Ordr Risk State	String value
RiskScore	Ordr Risk Score	Categorized: Normal(0), Low(0.1-3.9), Medium(4.0-6.9), High(7.0-8.9), Critical(9.0+)
KnownVulnRiskState	Ordr Known Vulnerability Risk State	String value
ConnStatus	Ordr Connection Status	String value
ClassificationState	Ordr Classification State	String value
HasExternalFlows	Ordr Has External Flows	String value
AccessType	Ordr Access Type	String value
VlanName	Ordr VLAN Name	String value
Subnet	Ordr Subnet	String value
SensorName	Ordr Sensor Name	String value
SensorIp	Ordr Sensor IP Address	String value
SwVersion	Ordr Software Version	String value
Fqdn	Ordr FQDN	String value
DhcpHostname	Ordr DHCP Hostname	String value
AlarmCount	Ordr Alarm Count	Categorized: 0, 1-9, 10-50, 50+
FdaClass	Ordr FDA Class	Numeric value
HasPhi	Ordr Has PHI	Boolean value
IsBlacklisted	Ordr Is Blacklisted	Boolean value
Proxied	Ordr Is Proxied	Boolean value
DeviceName	Ordr Device Name	String value
DeviceSubCategory	Ordr Device Sub Category	String value
DhcpEnabled	Ordr DHCP Enabled	Boolean value
GuestDevice	Ordr Is Guest Device	Boolean value
NwLocation	Ordr Network Location	String value

Unmanaged Devices

Core Tags

These core tags are applied to unmanaged devices when the Devices option is selected in Target Asset Types.

Ordr Attribute	Xshield Core Tag
MfgName/LongMfgName	Device Manufacturer
Group	Device Category
Profile	Device Subcategory
ModelNameNo	Device Model
SwVersion	Device Version
SerialNo	Device Serial Number

Vulnerabilities

Ordr continuously discovers and correlates CVEs (Common Vulnerabilities and Exposures) for each asset in your environment. Xshield imports these vulnerability lists during every sync, enabling you to:

• Search for devices that contain specific CVEs.
• Create Tag Rules that automatically tag vulnerable assets based on their CVE lists (for example, tag assets whose CVE list contains CVE-2021-44228 or other critical vulnerabilities).
• Prioritize remediation efforts by identifying high-risk devices with known vulnerabilities.
• Generate compliance reports showing vulnerability posture across your OT/IoT environment.

The vulnerability data imported from Ordr includes CVE IDs, severity scores, and risk categorizations, providing comprehensive visibility into the security posture of your connected device infrastructure.
