Create Named Networks

Define Management and Infra Networks​

Creating Named Networks​

Go to the Networks of the left side panel. Click the Create Networks button and follow instructions on the screen.

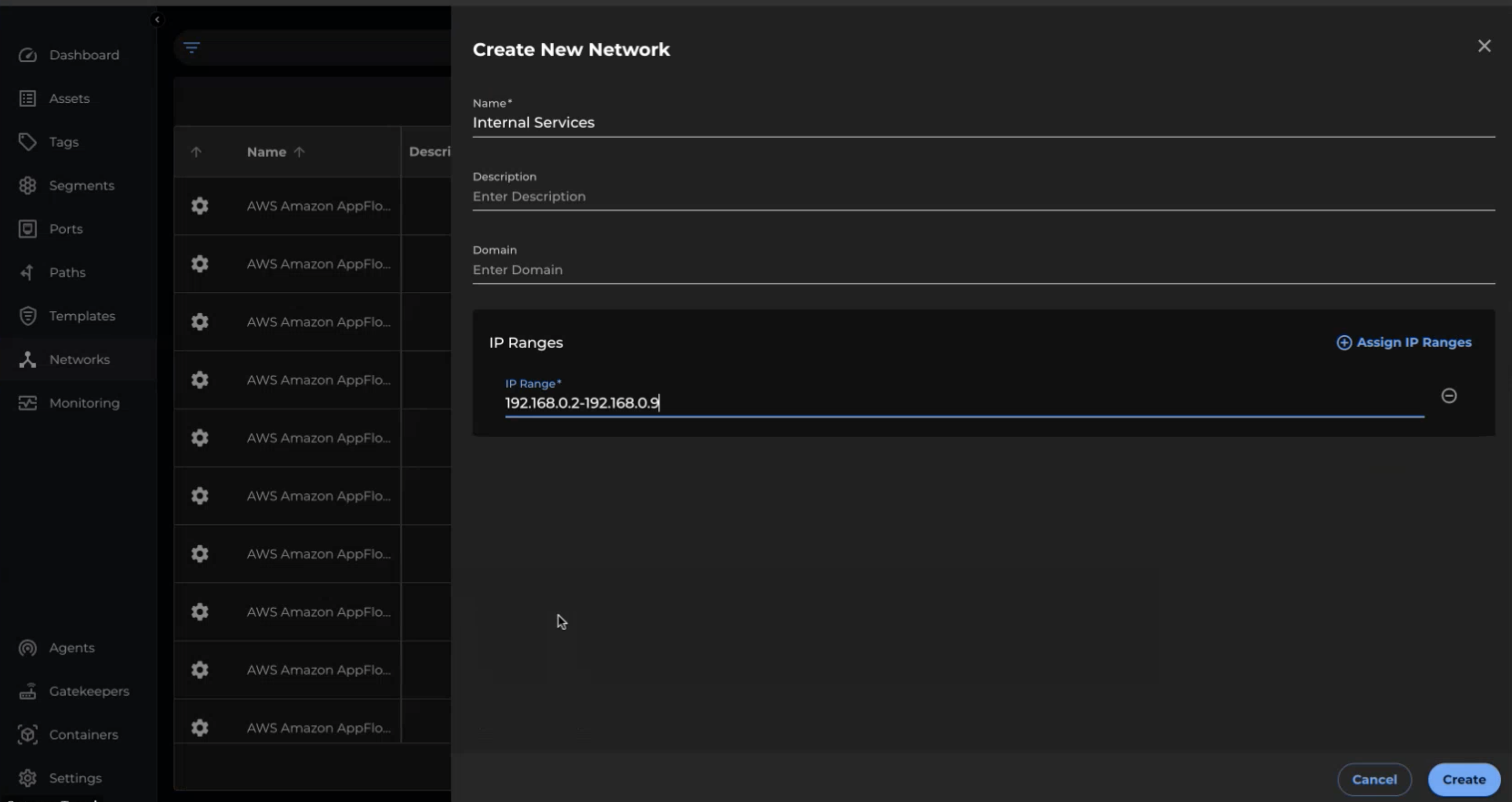

Create Named Network

Similarly, all the named networks are created. Here is a sample list of named networks created for this example.

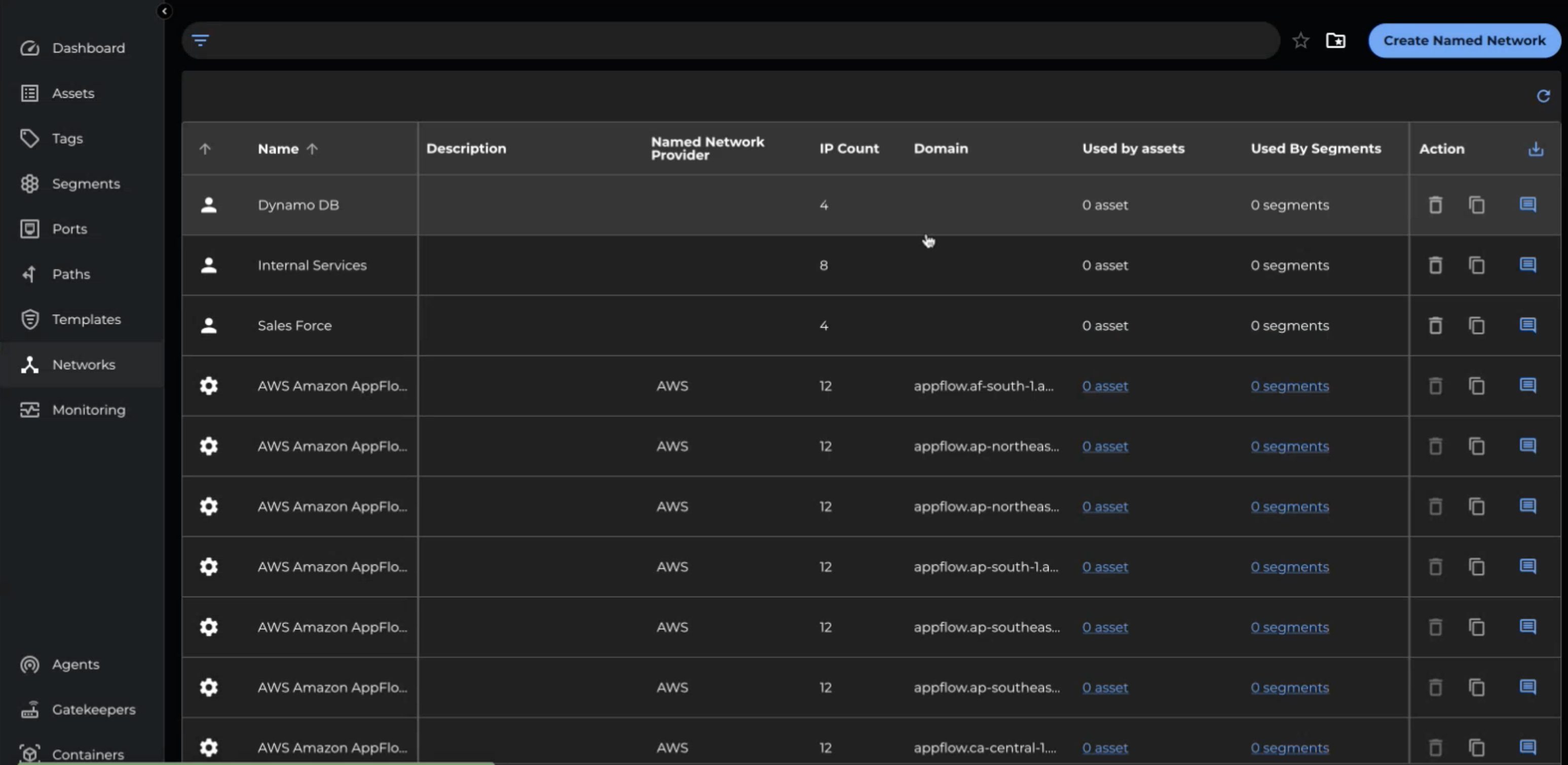

Named Networks

Assign Named Networks to Segments​

Now, segments are assigned to these named networks for structured network management.

Go to Segments on the left side panel. Under the named network column select a value and follow instructions as shown on the Assigned Named Networks panel.

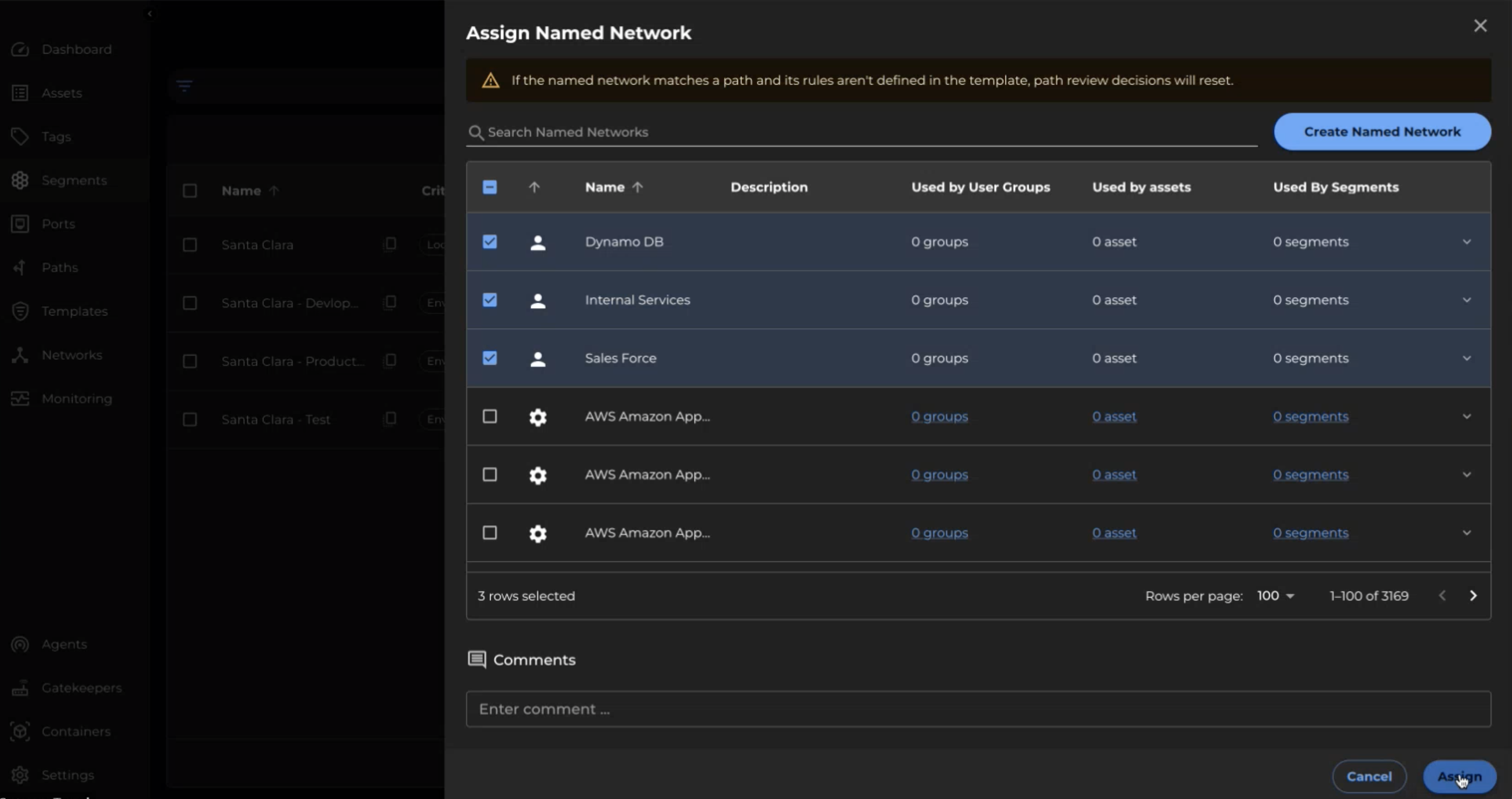

Assign Named Network

After assignment, the segments are associated with named networks as shown here:

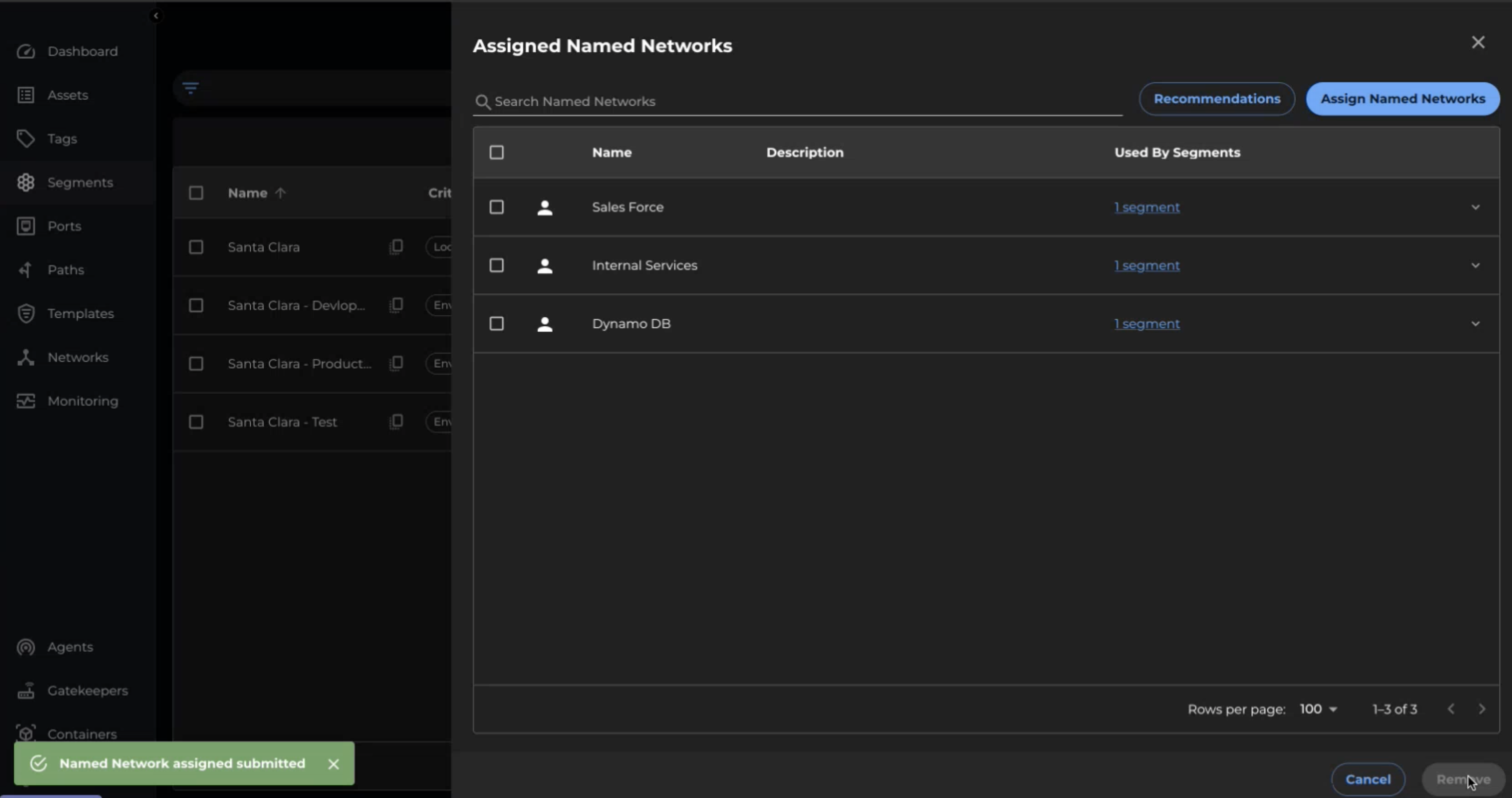

Assigned Named Networks

Here the named networks are visualized:

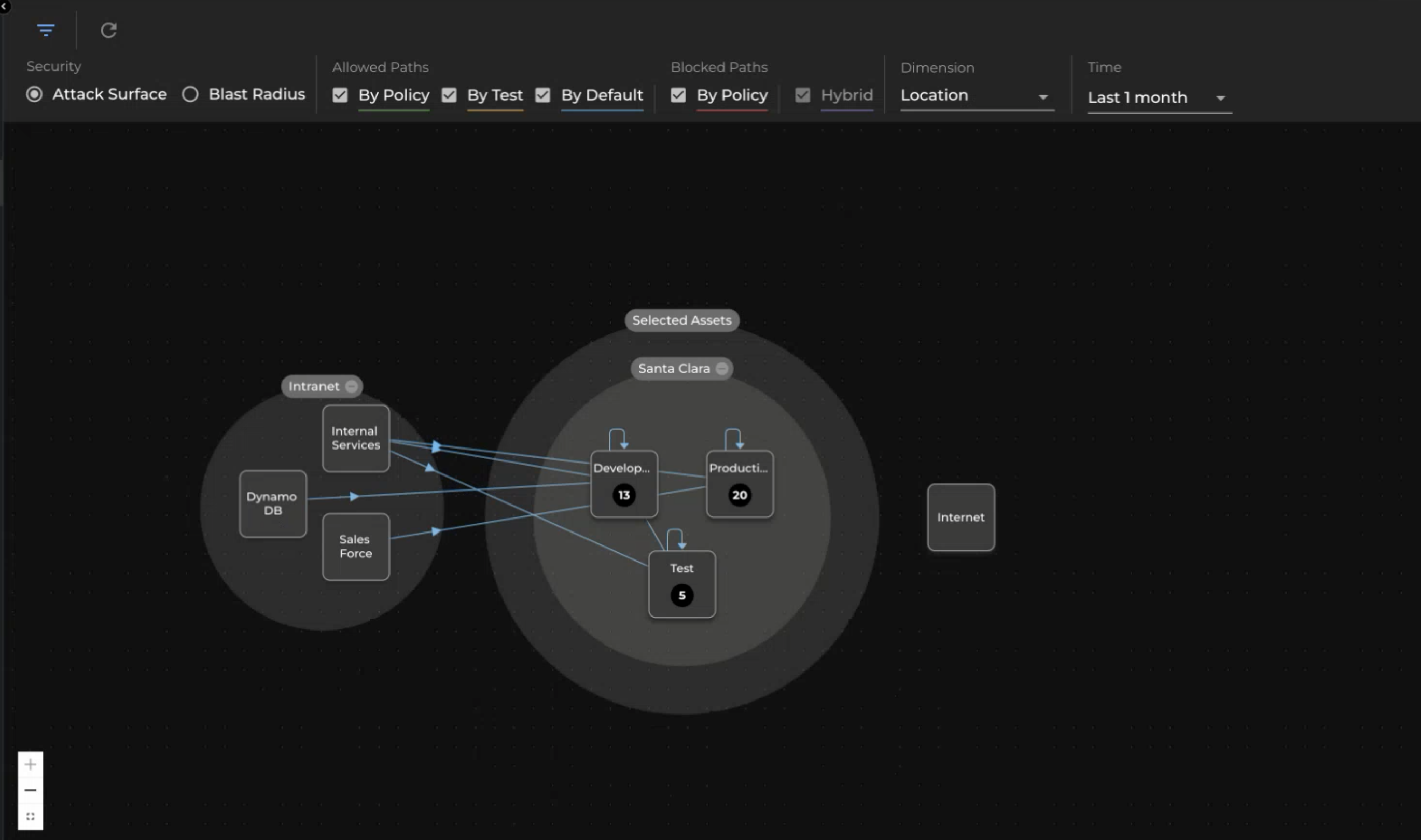

Visualizing Named Networks
