Topology
This document provides an overview of the standard 3-layer enterprise network topology and examines how traffic flows in environments with and without Gatekeeper deployment.
The topology consists of three hierarchical layers:
- Access Layer: Where end devices connect (L2 or L3 switches)
- Distribution Layer: Aggregation and routing between access switches (L3 switches)
- Core Layer: High-speed backbone connecting to routers and external networks

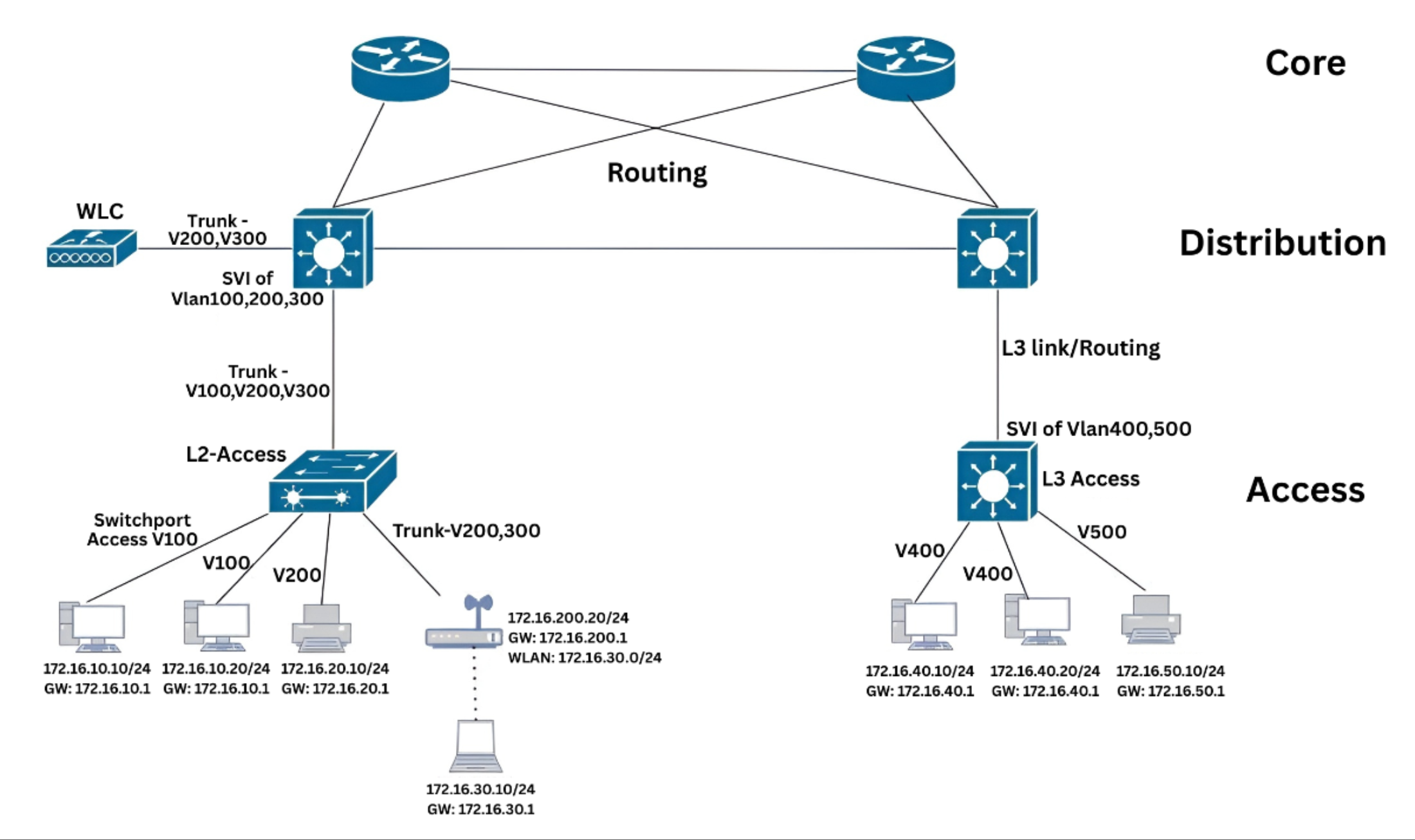

3 layer enterprise network topology without Gatekeepers deployed
Legend:
<Ephemeral>- Ephemeral Port (dynamically assigned port number)- L2 AS - Layer 2 Access Switch
- L3 AS - Layer 3 Access Switch
- L3 DS - Layer 3 Distribution Switch
- Core - Core Layer Router
- GK LAN - Gatekeeper LAN Interface
- GK WAN - Gatekeeper WAN Interface
For the devices connected to L2 access switch
East-West Traffic (Intra-VLAN Communication): When devices in same VLAN need to communicate.
172.16.10.10/24:<Ephemeral> → L2 AS → 172.16.10.20/24:8443
172.16.10.20/24:8443 → L2 AS → 172.16.10.10/24:<Ephemeral>

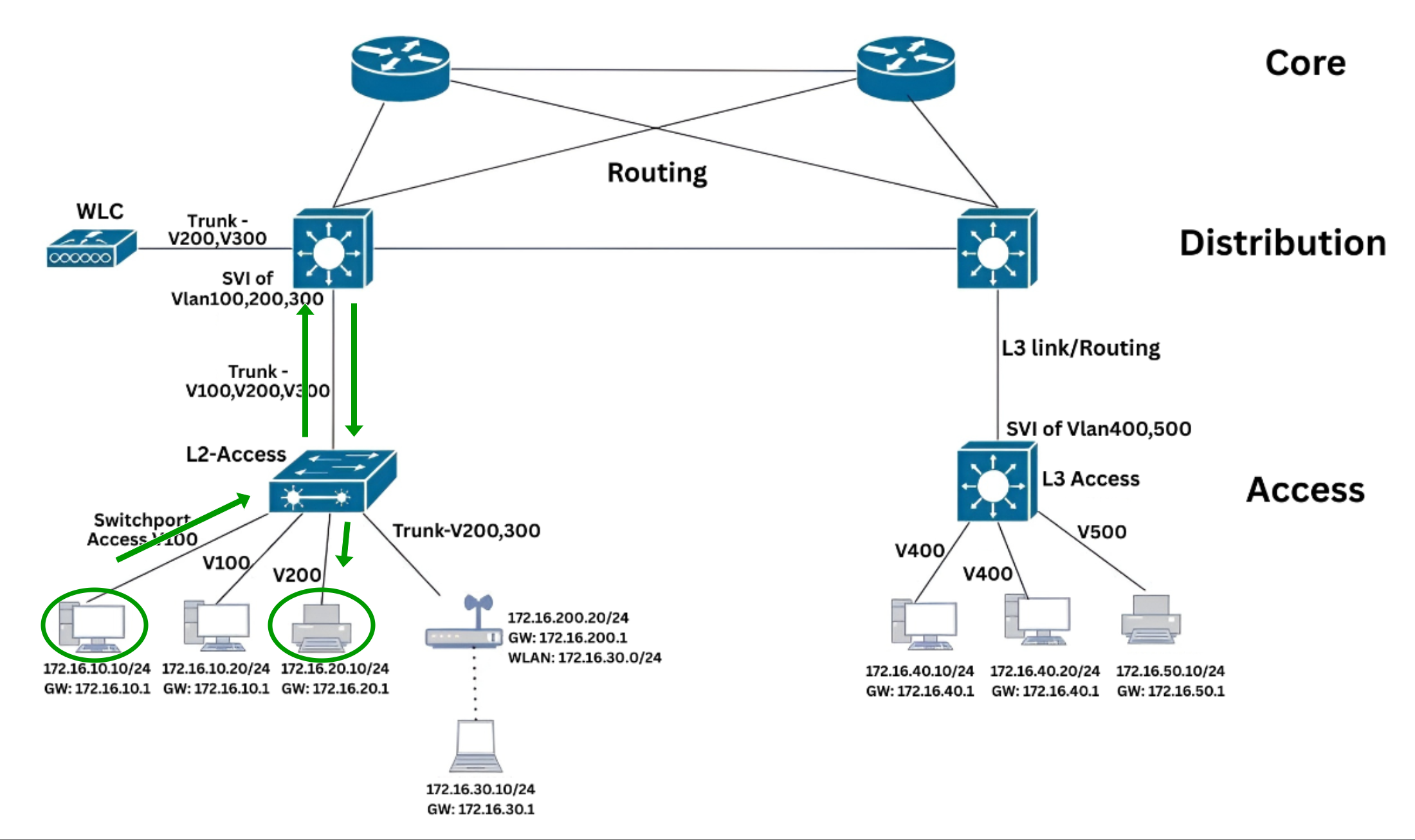

East-West Traffic (Inter-VLAN Communication): When devices in different VLANs need to communicate.
172.16.10.10/24:<Ephemeral> → L2 AS → 172.16.10.1 (L3 DS) 172.16.20.1 → L2 AS → 172.16.20.10/24:8443
172.16.20.10/24:8443 → L2 AS → 172.16.20.1 (L3 DS) 172.16.10.1 → L2 AS → 172.16.10.10/24:<Ephemeral>

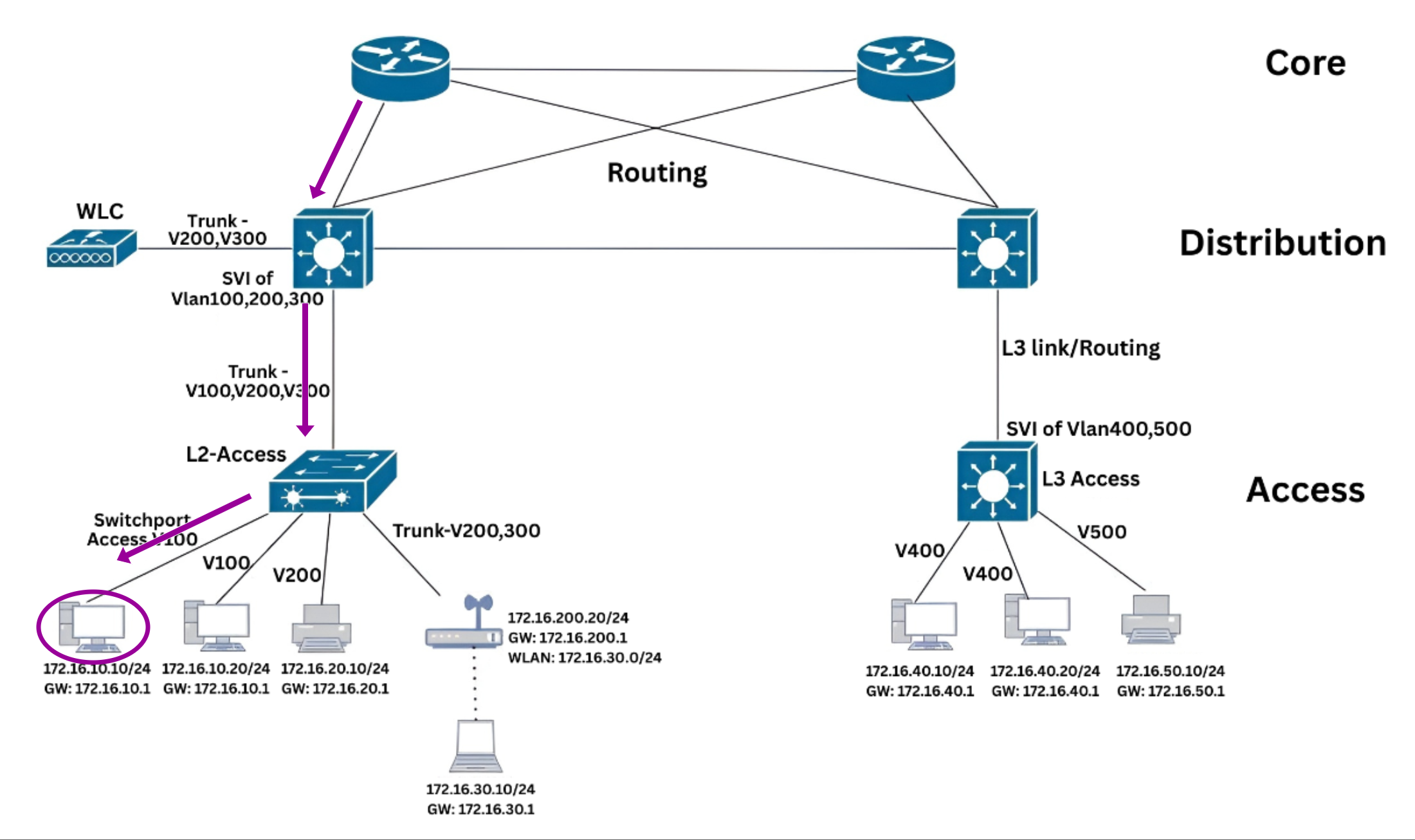

North-South Traffic (External Communication): When device need to communicate with the external network.
172.16.10.10/24:<Ephemeral> → L2 AS → 172.16.10.1 (L3 DS) → Core → 8.8.8.8:53
8.8.8.8:53 → Core → L3 DS → L2 AS → 172.16.10.10/24:<Ephemeral>
For the devices connected to L3 access switch

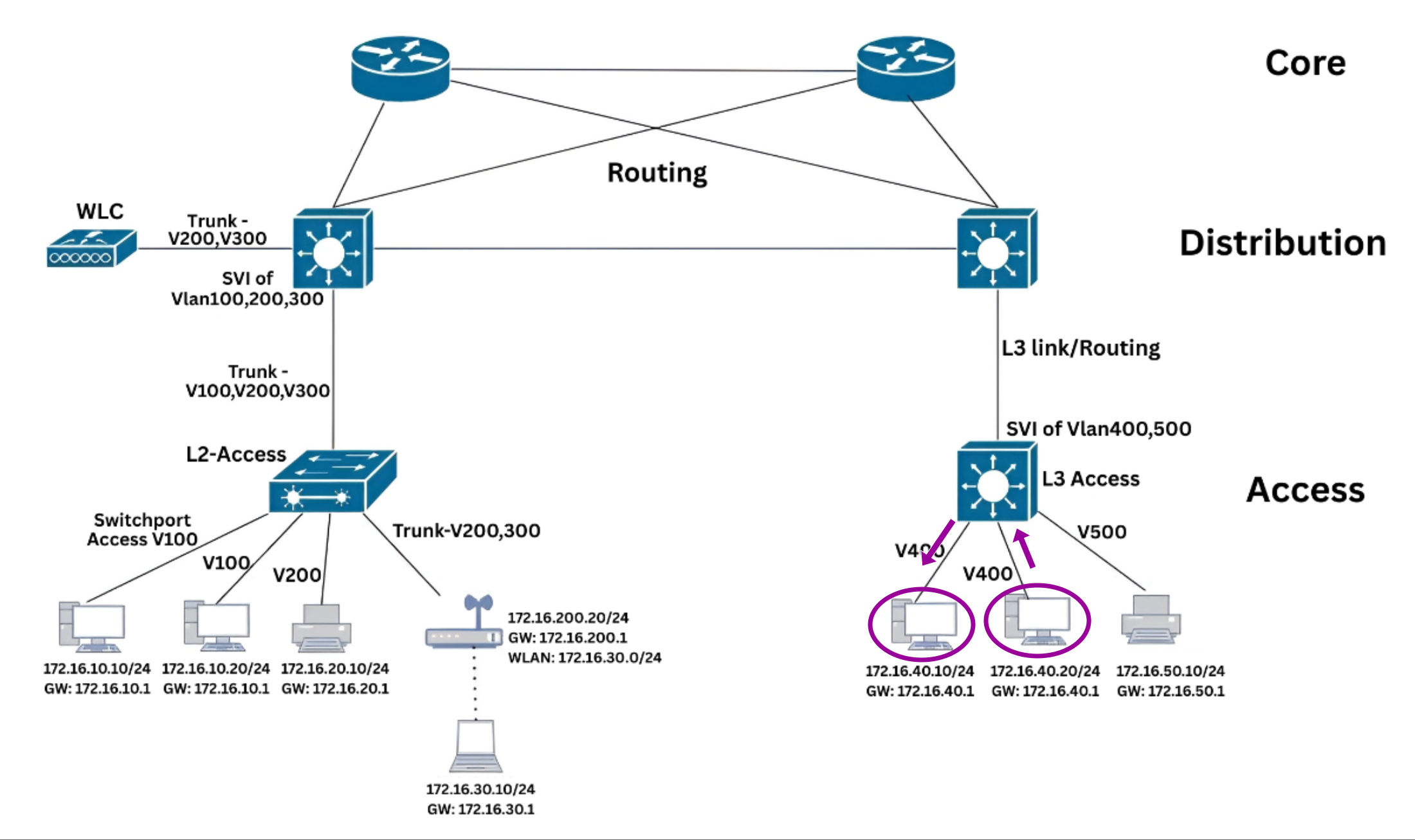

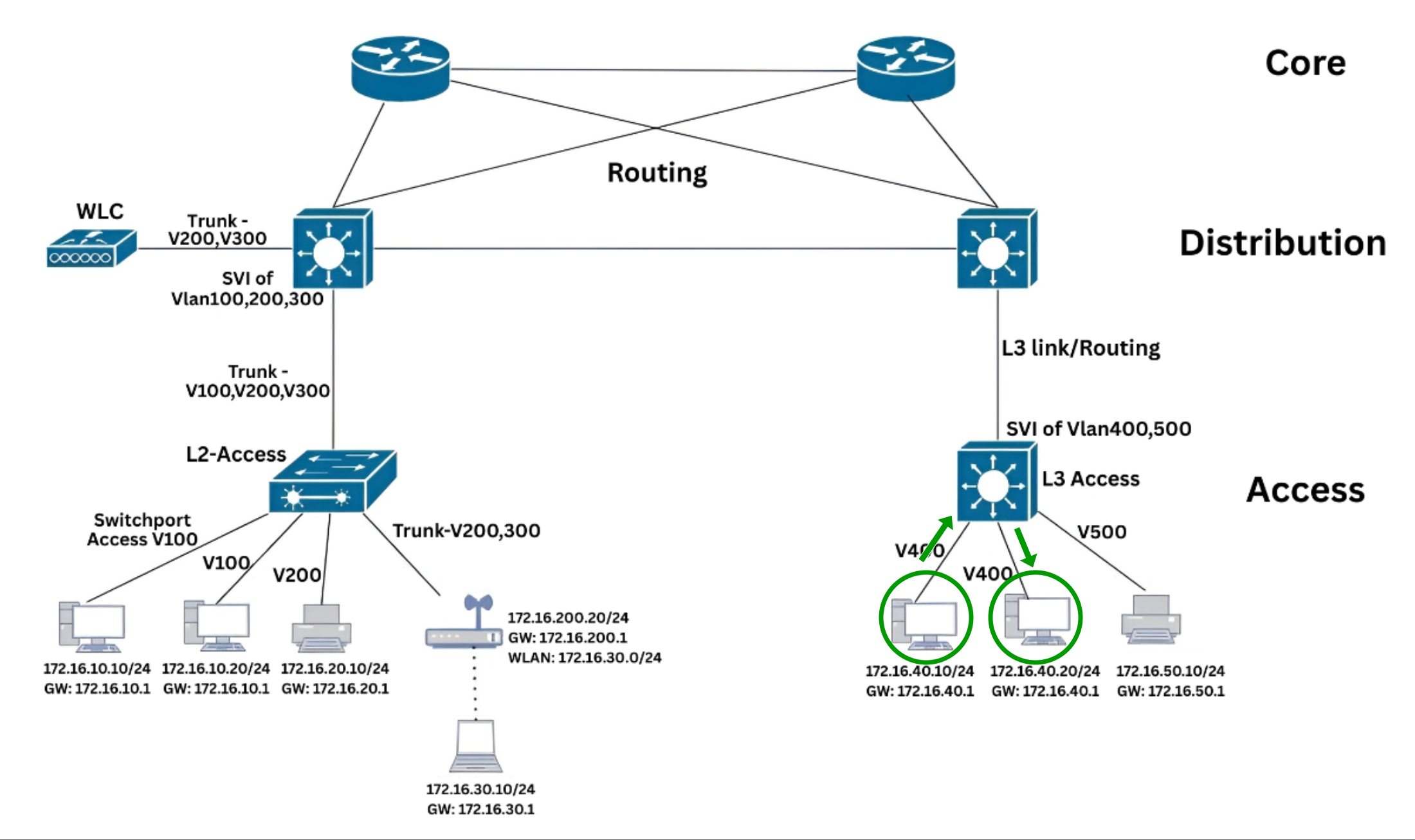

East-West Traffic (Intra-VLAN Communication): When devices in same VLAN need to communicate.
172.16.40.10/24:<Ephemeral> → L3 AS → 172.16.40.20/24:8443
172.16.40.20/24:8443 → L3 AS → 172.16.40.10/24:<Ephemeral>

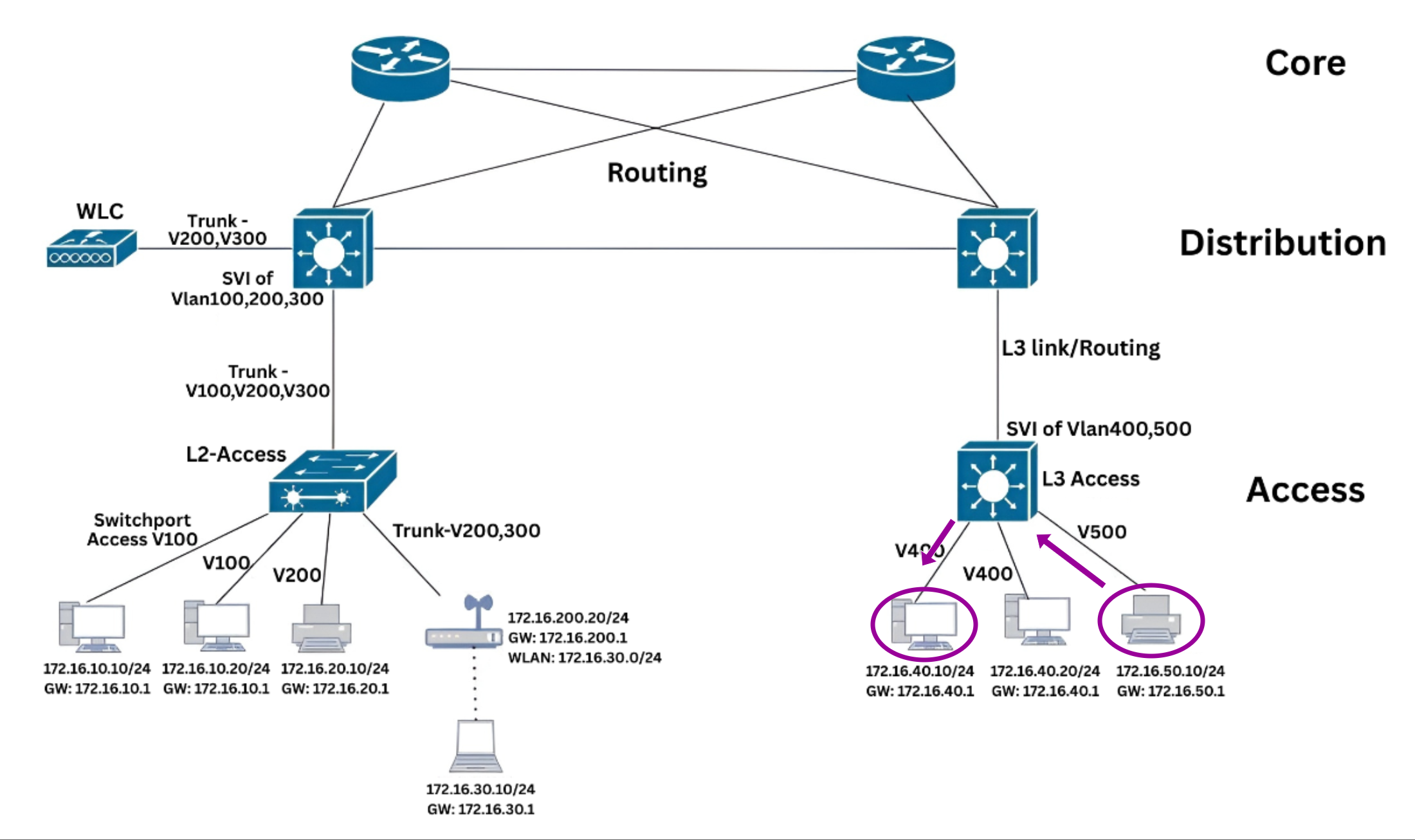

East-West Traffic (Inter-VLAN Communication): When devices in different VLANs need to communicate.
172.16.40.10/24:<Ephemeral> → (172.16.40.1) L3 AS (172.16.50.1) → 172.16.50.10/24:8443
172.16.50.10/24:8443 → (172.16.50.1) L3 AS (172.16.40.1) → 172.16.40.10/24:<Ephemeral>

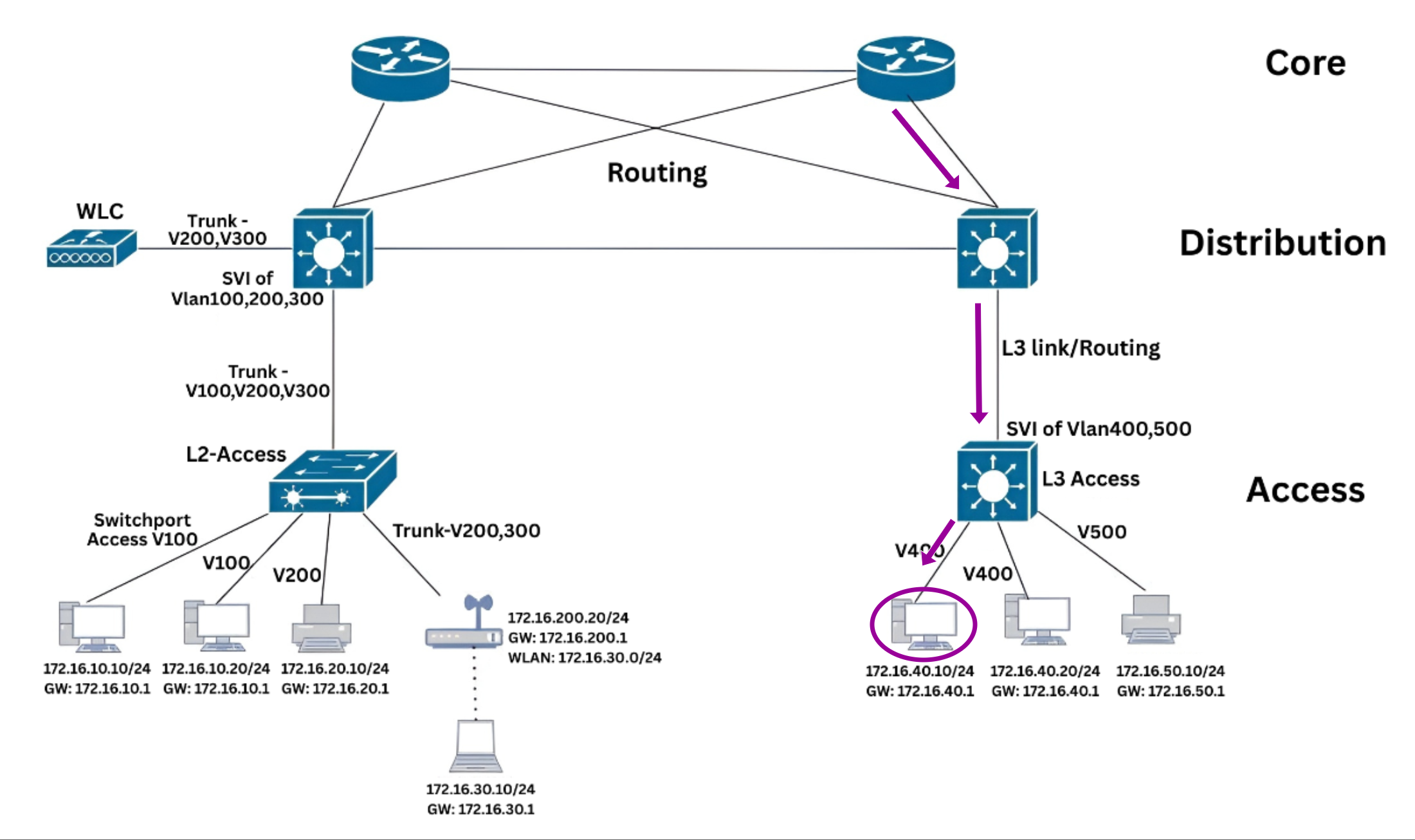

North-South Traffic (External Communication): When device need to communicate with the external network.
172.16.40.10/24:<Ephemeral> → L3 AS → 172.16.40.1 (L3 DS) → Core → 8.8.8.8:53
8.8.8.8:53 → Core → L3 DS → L3 AS → 172.16.40.10/24:<Ephemeral>

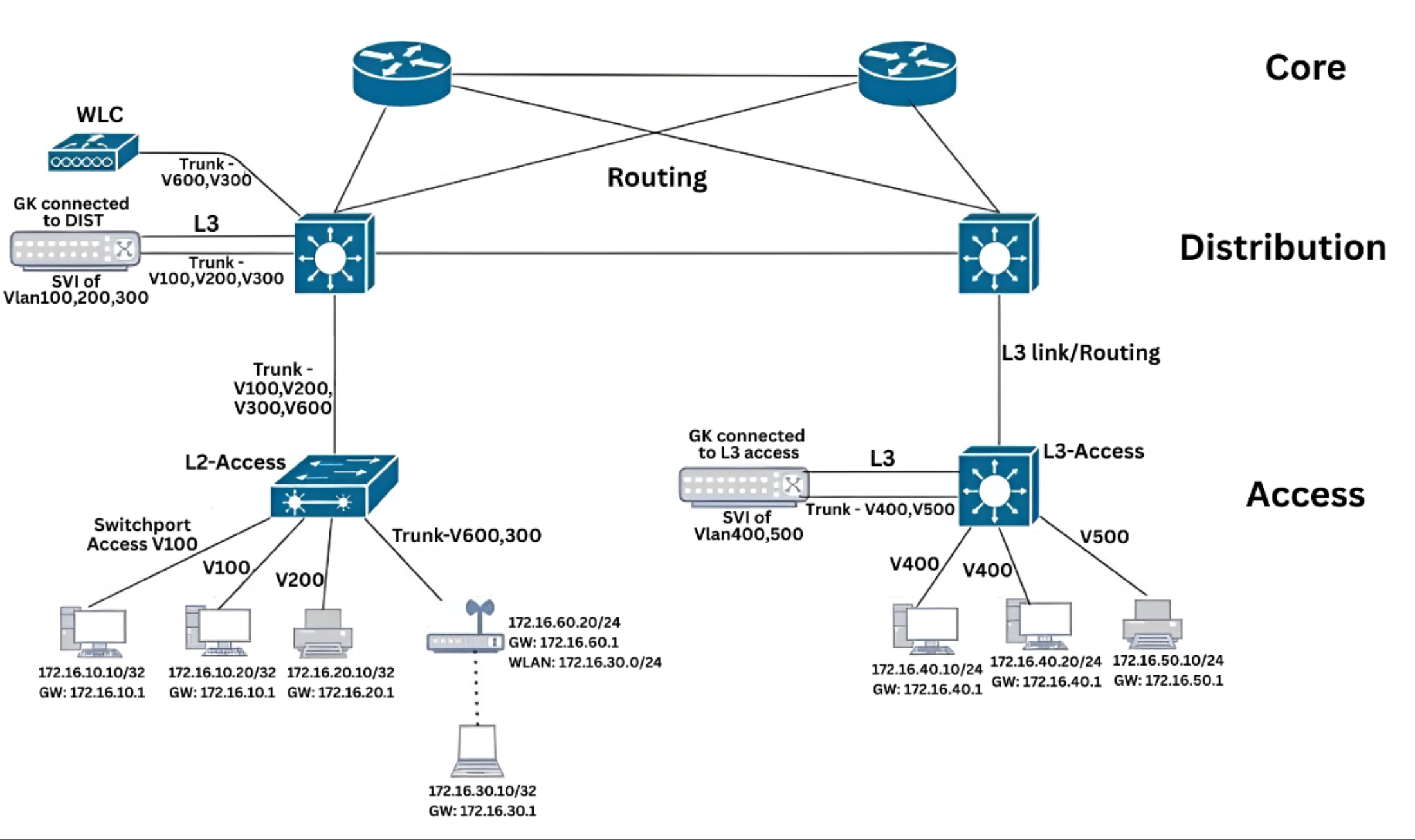

3 layer enterprise network topology with Gatekeepers deployed
When a policy is applied to any of the device, firewall rules are automatically pushed to the Gatekeeper(s) which is the enforcement point.
There are two modes of deployment supported.
- Symmetric Mode
- Asymmetric Mode
Symmetric Mode
Here the SVIs (of VLANs which are to be managed by the Gatekeeper) are shut down on the L3 distribution switch (which is connected to the Gatekeeper). The SVIs are instead configured on the Gatekeepers. So Gatekeeepers become the gateway for the devices. Also a static route will be configured in the L3 distribution switch / L3 access switch (to route the traffic destined to devices in any VLANs) through the Gatekeeper's WAN interface.
For the devices connected to L2 access switch

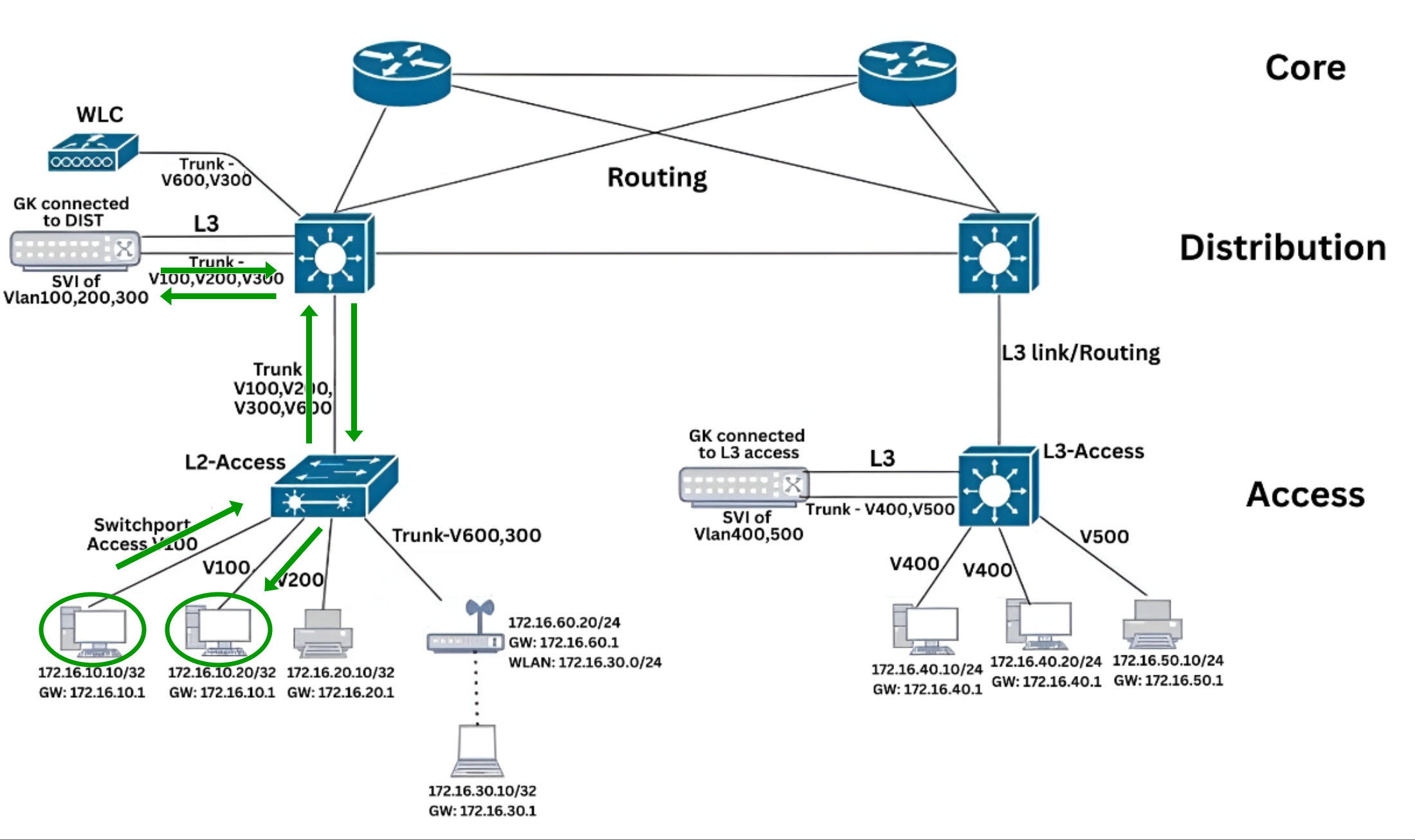

East-West Traffic (Intra-VLAN Communication): When devices in same VLAN need to communicate.
172.16.10.10/32:<Ephemeral> → L2 AS → L3 DS → (172.16.10.1) GK LAN → L3 DS → L2 AS → 172.16.10.20/32:8443
172.16.10.20/32:8443 → L2 AS → L3 DS → (172.16.10.1) GK LAN → L3 DS → L2 AS → 172.16.10.10/32:<Ephemeral>

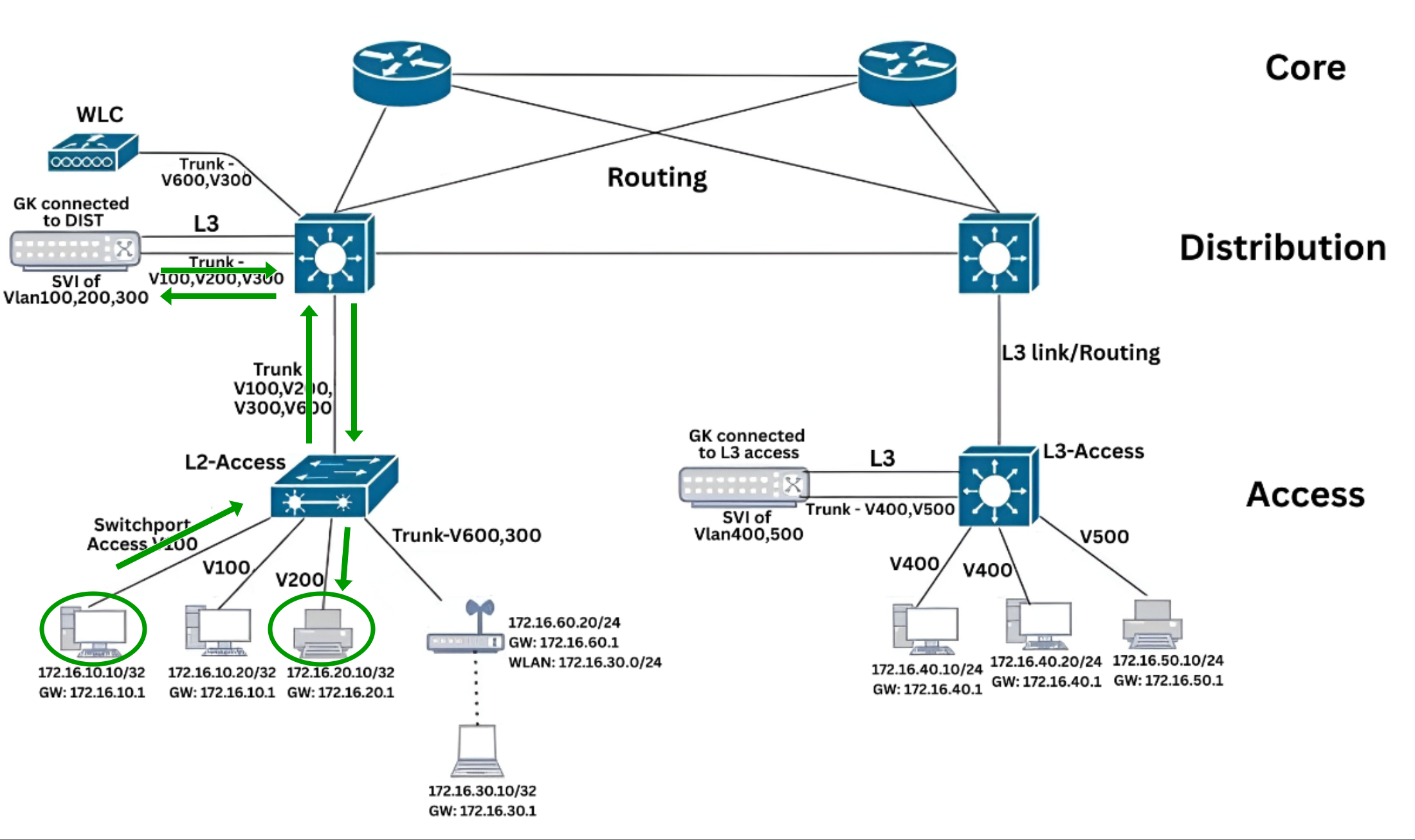

East-West Traffic (Inter-VLAN Communication): When devices in different VLANs need to communicate.
172.16.10.10/32:<Ephemeral> → L2 AS → L3 DS → (172.16.10.1) GK LAN (172.16.20.1) → L3 DS → L2 AS → 172.16.20.10/32:8443
172.16.20.10/32:8443 → L2 AS → L3 DS → (172.16.20.1) GK LAN (172.16.10.1) → L3 DS → L2 AS → 172.16.10.10/32:<Ephemeral>

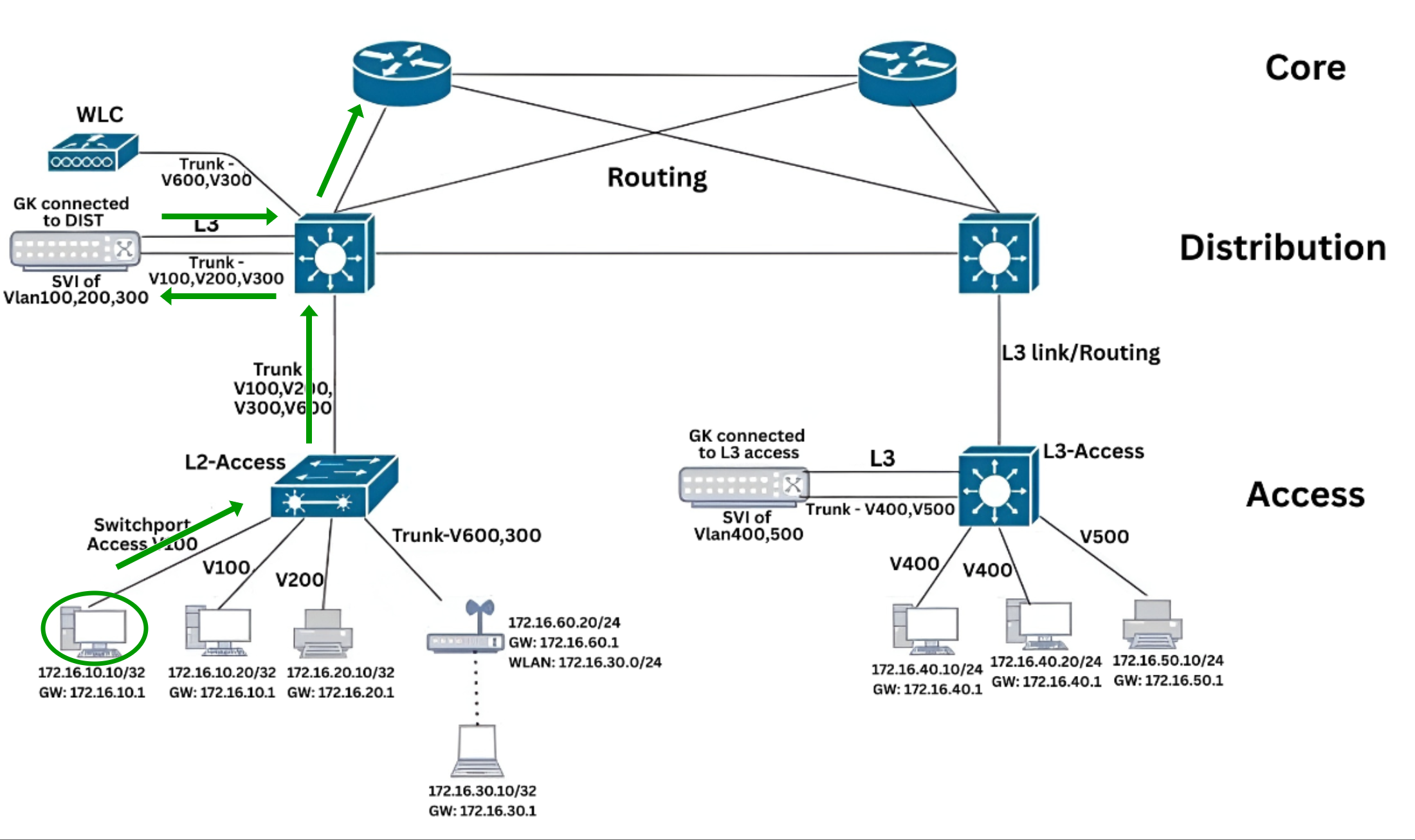

North-South Traffic (External Communication): When device need to communicate with the external network.
172.16.10.10/32:<Ephemeral> → L2 AS → L3 DS → (172.16.10.1) GK LAN → GK WAN → L3 DS → Core → 8.8.8.8:53
8.8.8.8:53 → Core → L3 DS → GK WAN → GK LAN → L3 DS → L2 AS → 172.16.10.10/32:<Ephemeral>
For the devices connected to L3 access switch

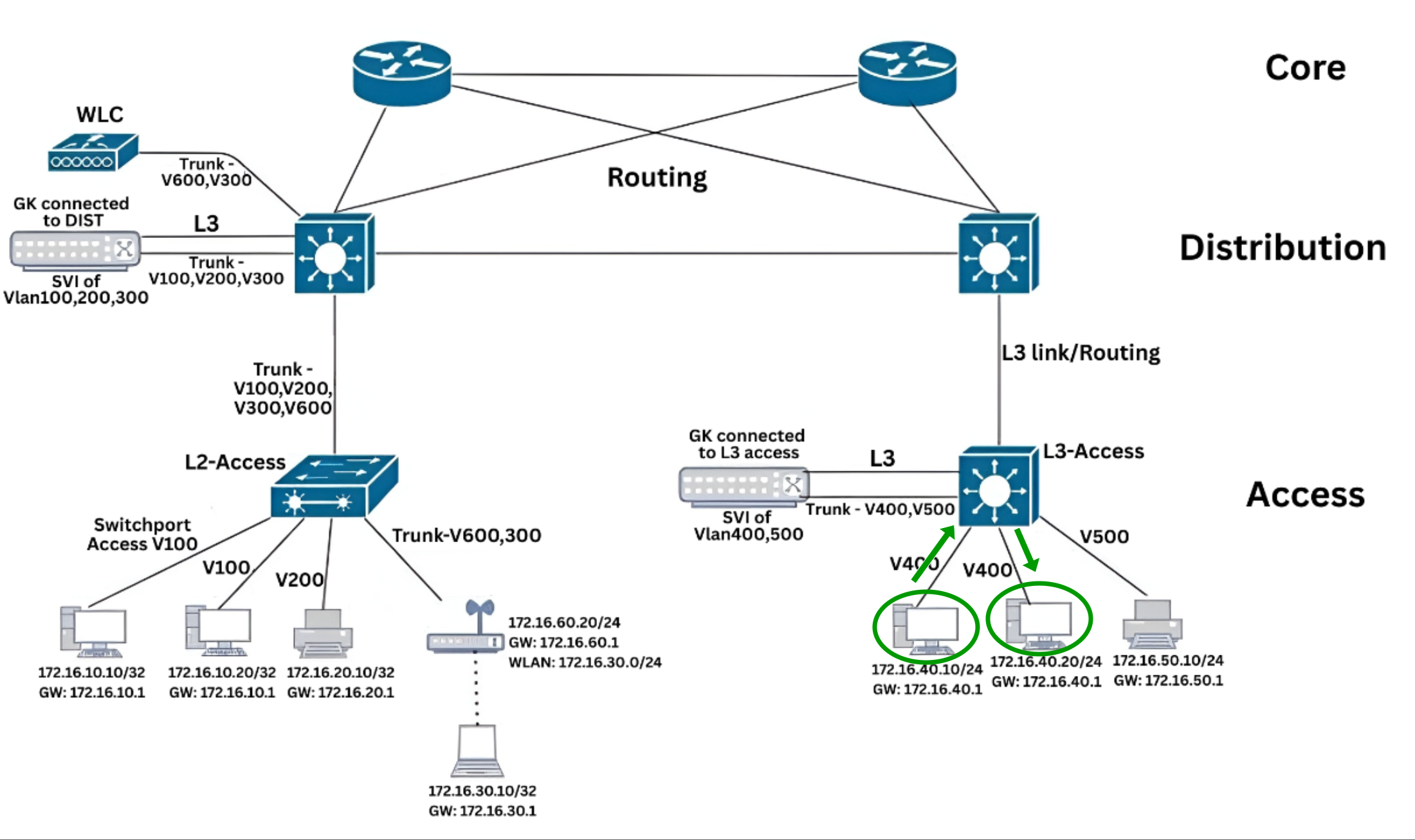

East-West Traffic (Intra-VLAN Communication): When devices in same VLAN need to communicate.
172.16.40.10/24:<Ephemeral> → L3 AS → 172.16.50.10/24:8443
172.16.50.10/24:8443 → L3 AS → 172.16.40.10/24:<Ephemeral>

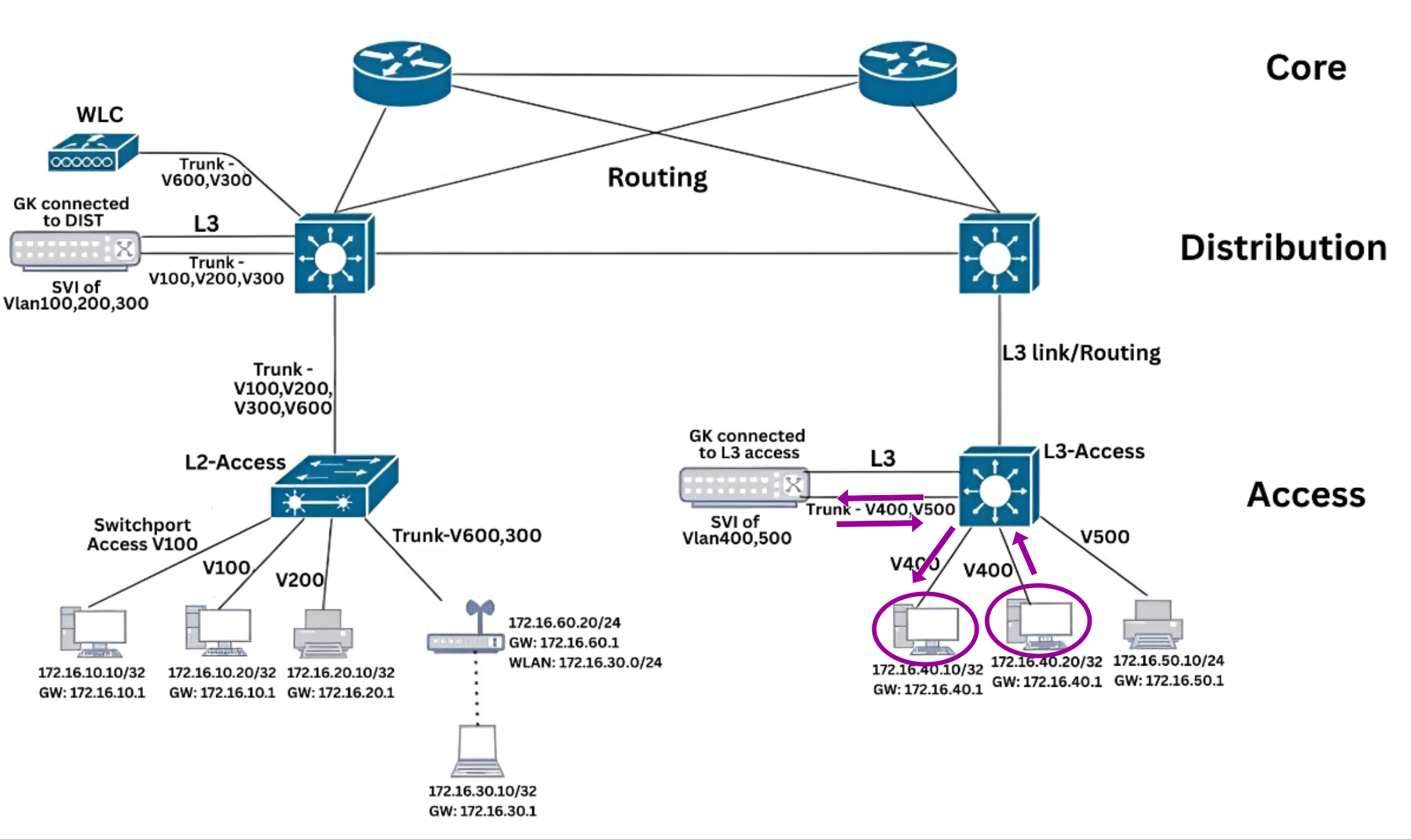

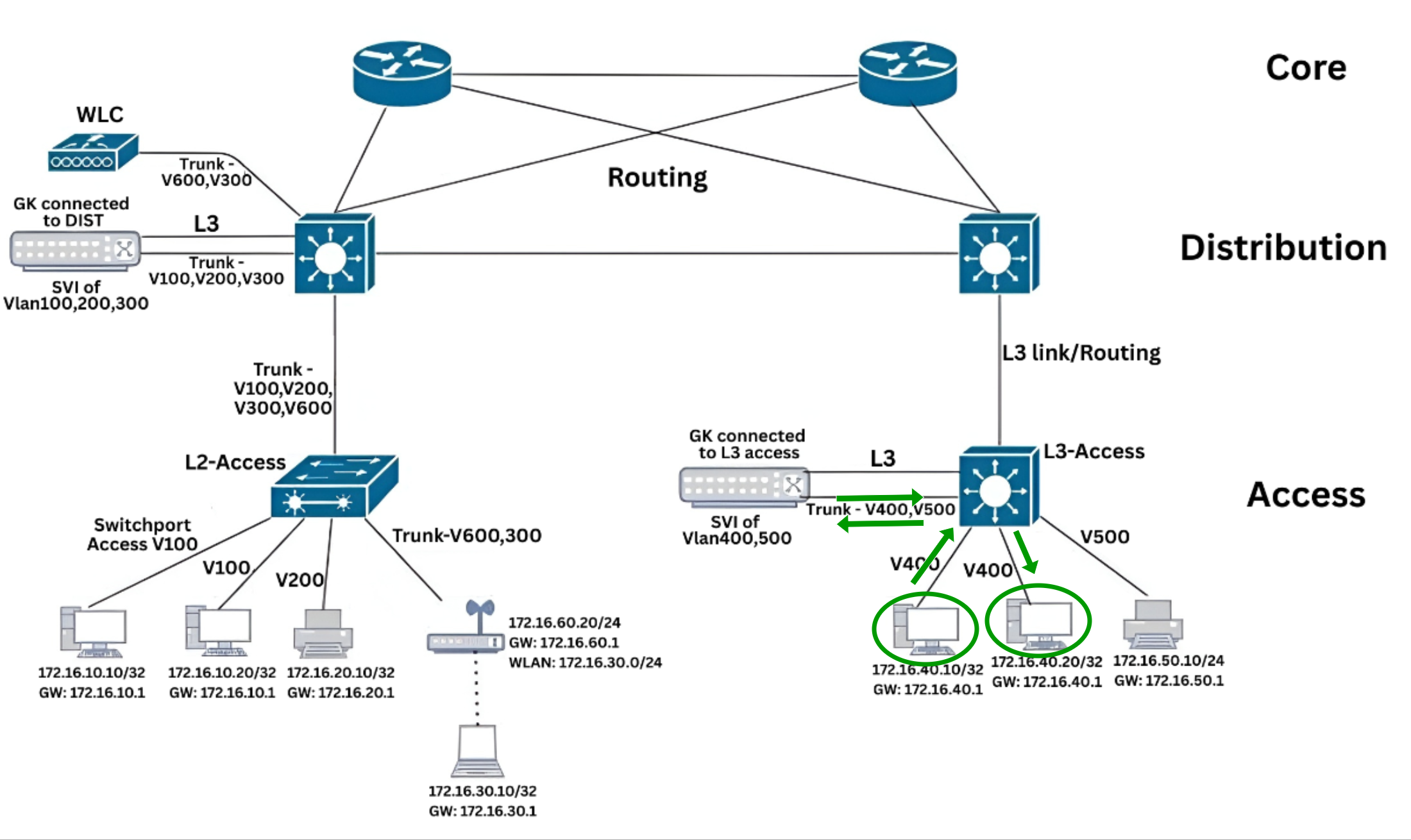

East-West Traffic (Intra-VLAN Communication) with /32 subnet mask: When devices in same VLAN need to communicate (with both of them configured with /32 subnet mask).
172.16.40.10/32:<Ephemeral> → L3 AS → (172.16.40.1) GK LAN → L3 AS → 172.16.40.20/32:8443
172.16.40.20/32:8443 → L3 AS → (172.16.40.1) GK LAN → L3 AS → 172.16.40.10/32:<Ephemeral>

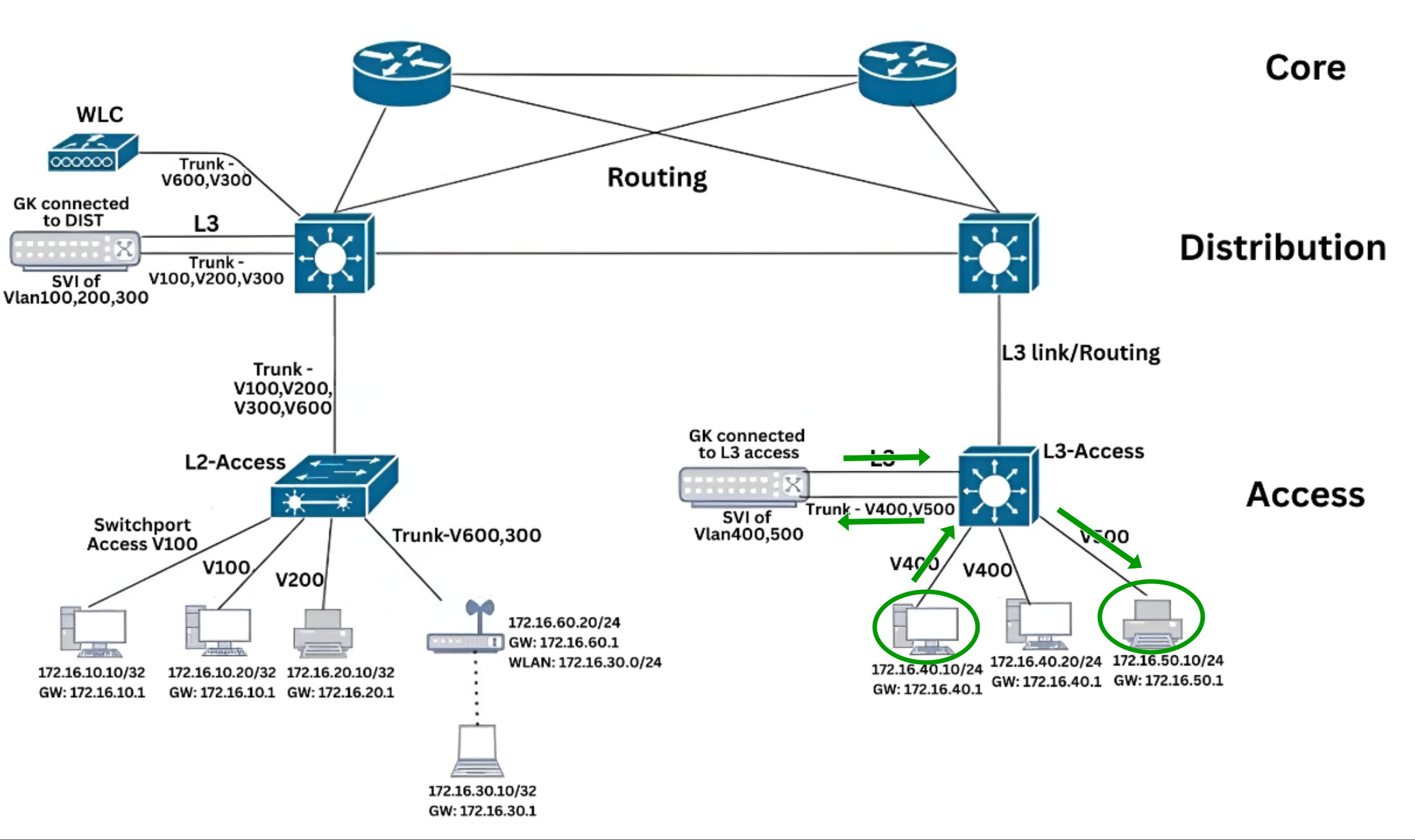

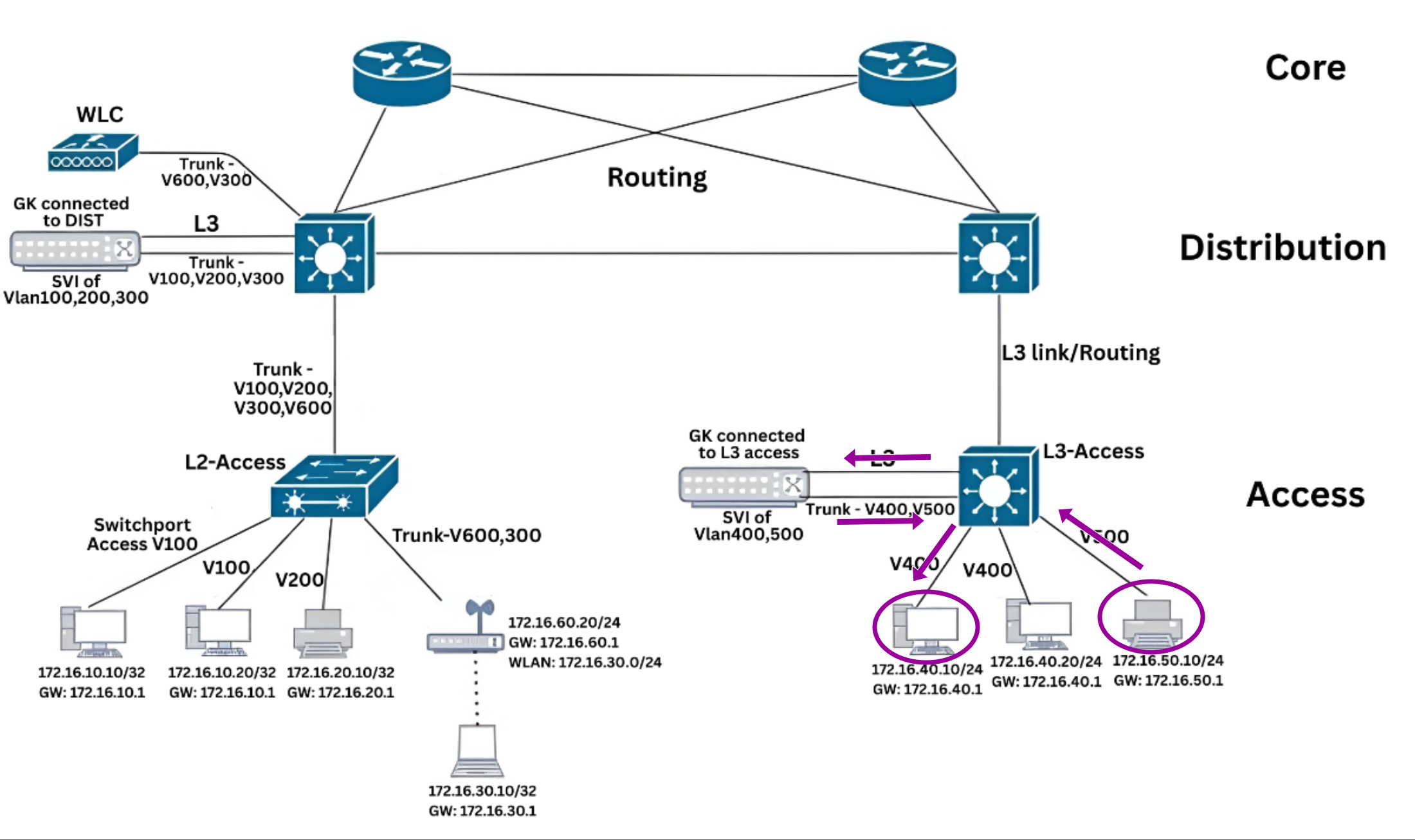

East-West Traffic (Inter-VLAN Communication): When devices in different VLANs need to communicate.
172.16.40.10/24:<Ephemeral> → L3 AS → (172.16.40.1) GK LAN (172.16.50.1) → L3 AS → 172.16.50.10/24:8443
172.16.50.10/24:8443 → L3 AS → (172.16.50.1) GK LAN (172.16.40.1) → L3 AS → 172.16.40.10/24:<Ephemeral>

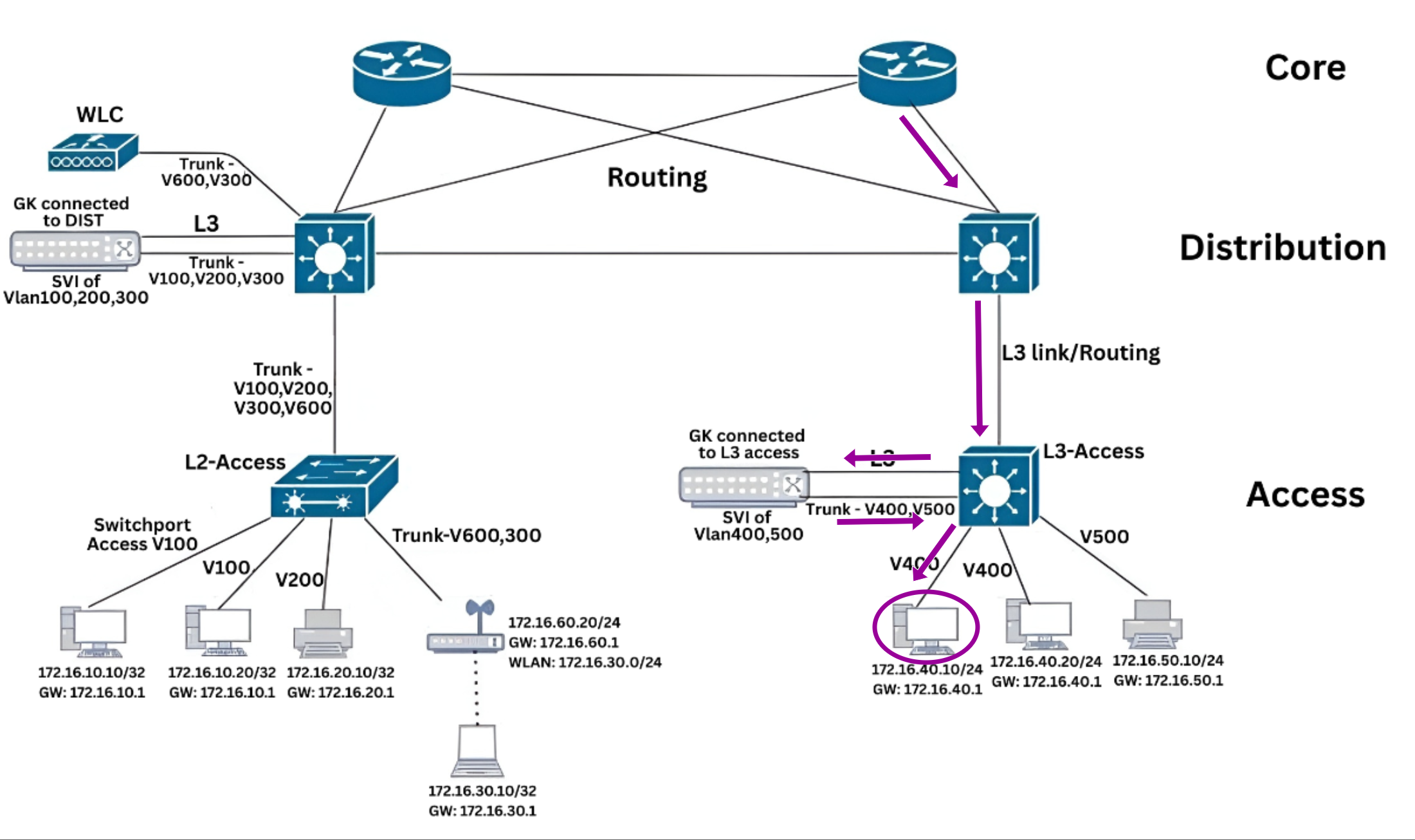

North-South Traffic (External Communication): When device need to communicate with the external network.
172.16.40.10/24:<Ephemeral> → L3 AS → (172.16.40.1) GK LAN → GK WAN → L3 AS → L3 DS → Core → 8.8.8.8:53
8.8.8.8:53 → Core → L3 DS → L3 AS → GK WAN → GK LAN → L3 AS → 172.16.40.10/24:<Ephemeral>
Asymmetric Mode
Here the SVIs are configured on the L3 distribution switch and the Gatekeeper's network interface will have one IP from the subnets of respective VLANs. These IPs are assigned as the gateway IP of the devices in respective VLANs. Also, here there is no static route defined as in case of symmetric mode.
For the devices connected to L2 access switch
Consider that the IPs assigned to the Gatekeeper's LAN interface are 172.16.10.2 and 172.16.20.2 for VLAN 100 and VLAN 200 respectively.

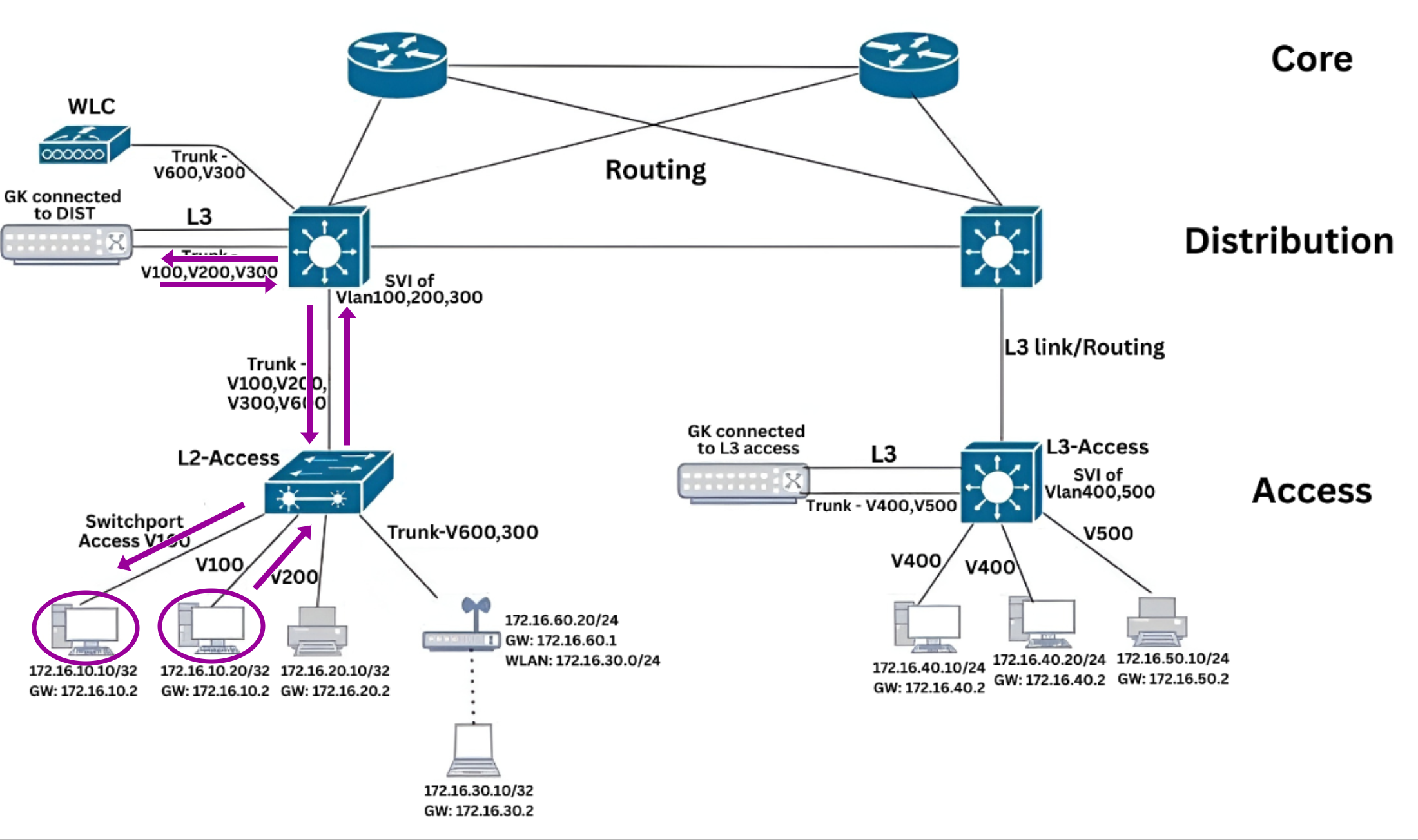

East-West Traffic (Intra-VLAN Communication): When devices in same VLAN need to communicate.
172.16.10.10/32:<Ephemeral> → L2 AS → L3 DS → (172.16.10.2) GK LAN → L3 DS → L2 AS → 172.16.10.20/32:8443
172.16.10.20/32:8443 → L2 AS → L3 DS → (172.16.10.2) GK LAN → L3 DS → L2 AS → 172.16.10.10/32:<Ephemeral>
East-West Traffic (Inter-VLAN Communication): When devices in different VLANs need to communicate.
172.16.10.10/32:<Ephemeral> → L2 AS → L3 DS → (172.16.10.2) GK LAN (172.16.20.2) → L3 DS → L2 AS → 172.16.20.10/32:8443
172.16.20.10/32:8443 → L2 AS → L3 DS → (172.16.20.2) GK LAN (172.16.10.2) → L3 DS → L2 AS → 172.16.10.10/32:<Ephemeral>

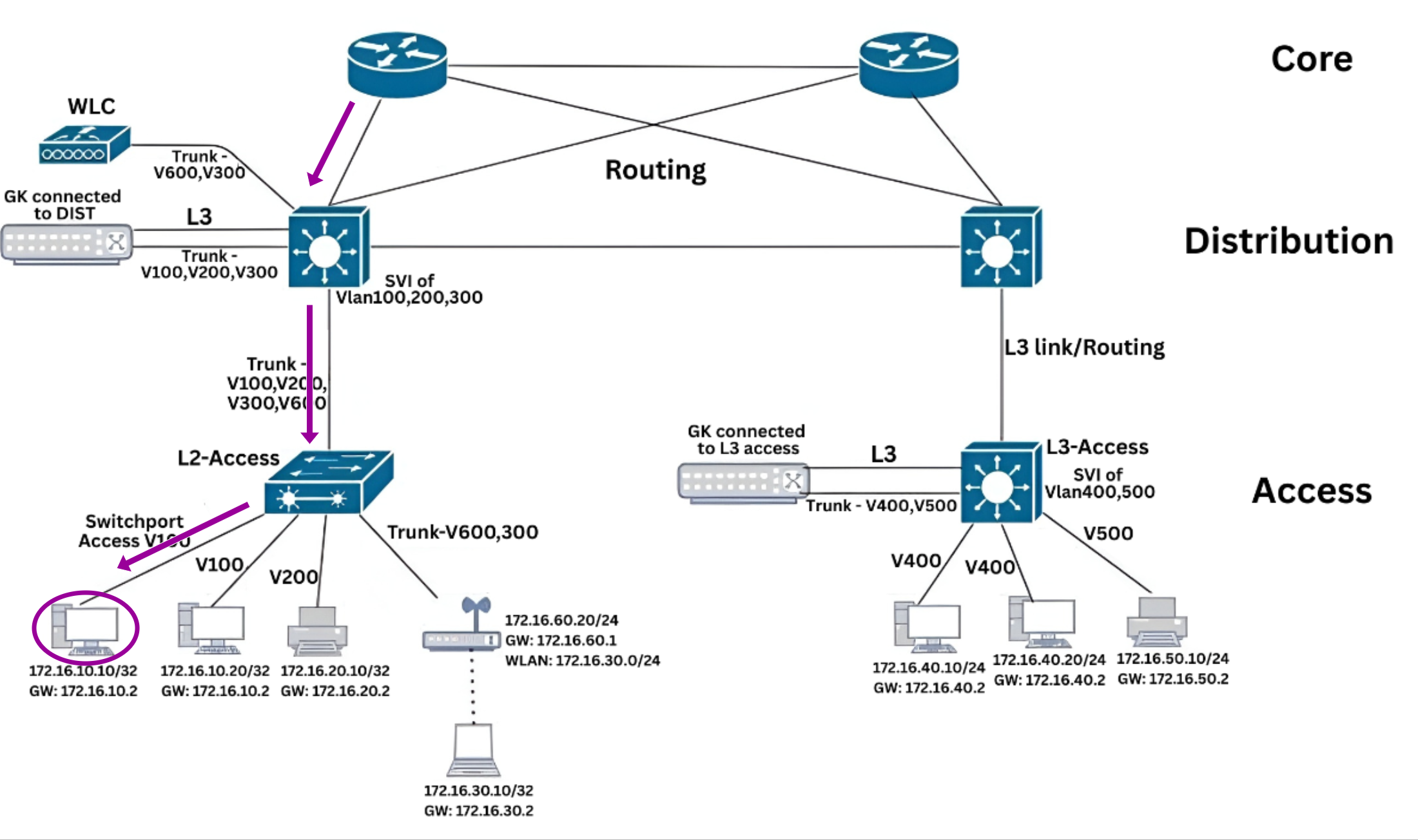

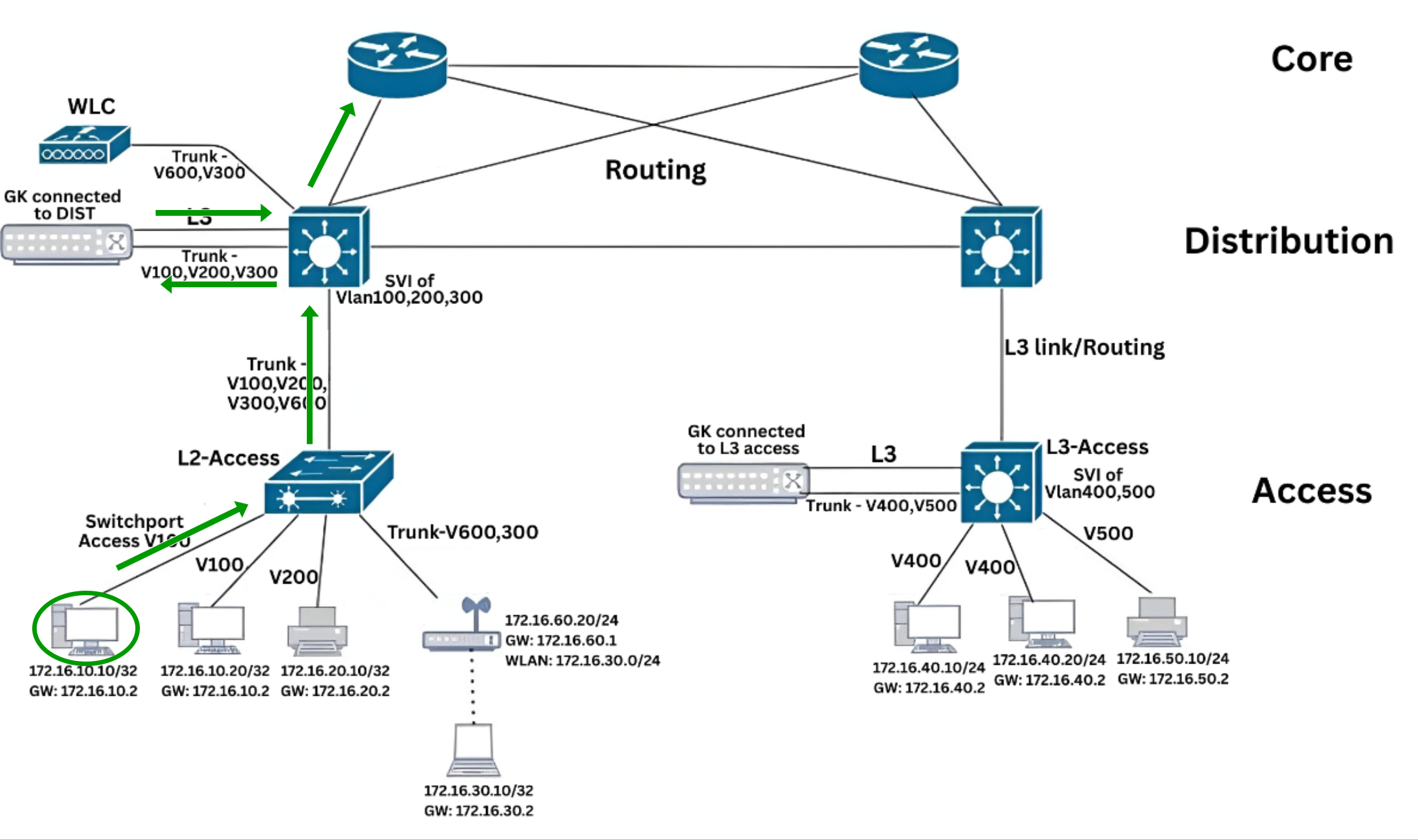

North-South Traffic (External Communication): When device need to communicate with the external network.
172.16.10.10/32:<Ephemeral> → L2 AS → L3 DS → (172.16.10.2) GK LAN → GK WAN → L3 DS → Core → 8.8.8.8:53
8.8.8.8:53 → Core → L3 DS → L2 AS → 172.16.10.10/32:<Ephemeral>
For the devices connected to L3 access switch
Consider that the IPs assigned to the Gatekeeper's LAN interface are 172.16.40.2 and 172.16.50.2 for VLAN 400 and VLAN 500 respectively.

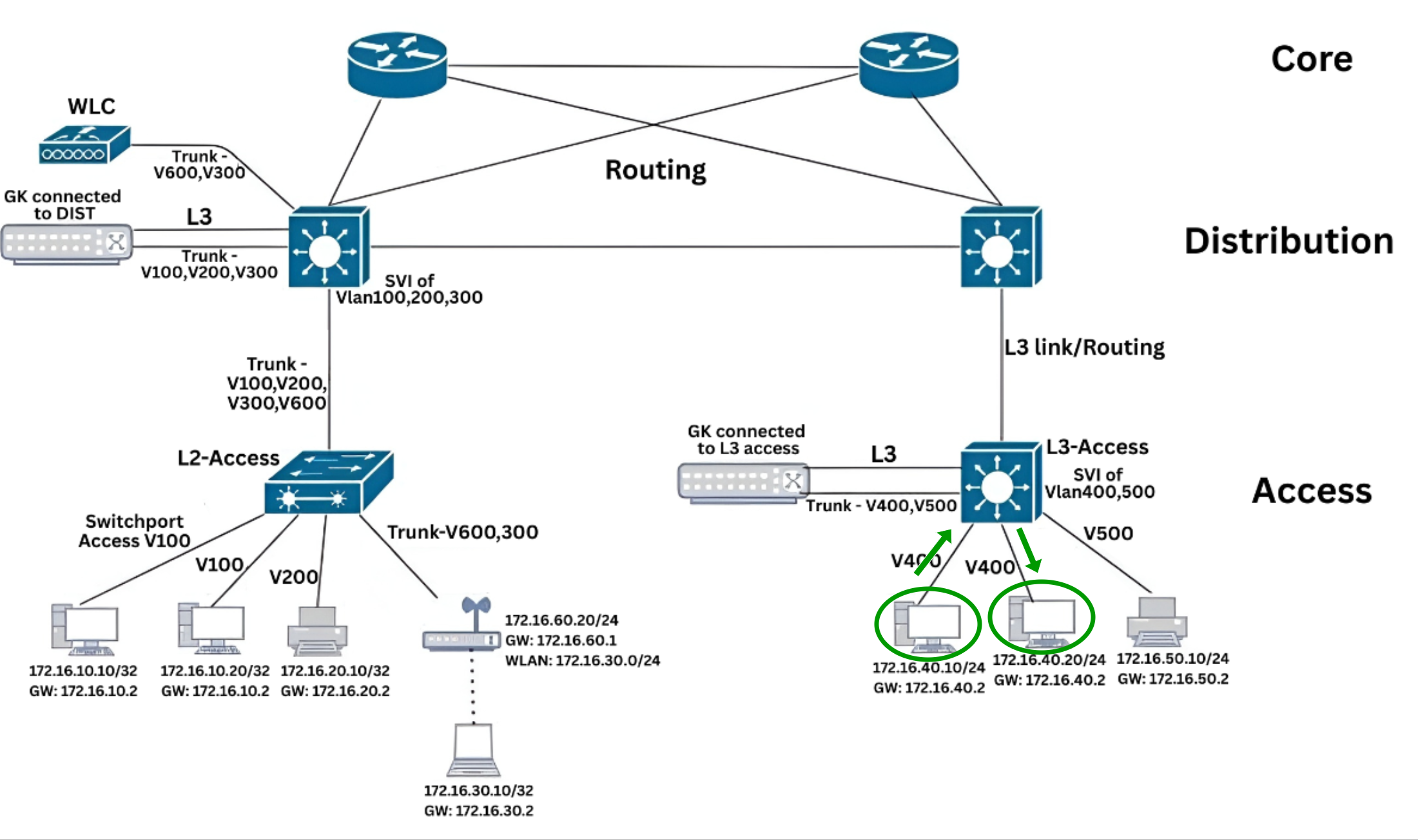

East-West Traffic (Intra-VLAN Communication): When devices in same VLAN need to communicate.
172.16.40.10/24:<Ephemeral> → L3 AS → 172.16.40.20/24:8443
172.16.40.20/24:8443 → L3 AS → 172.16.40.10/24:<Ephemeral>

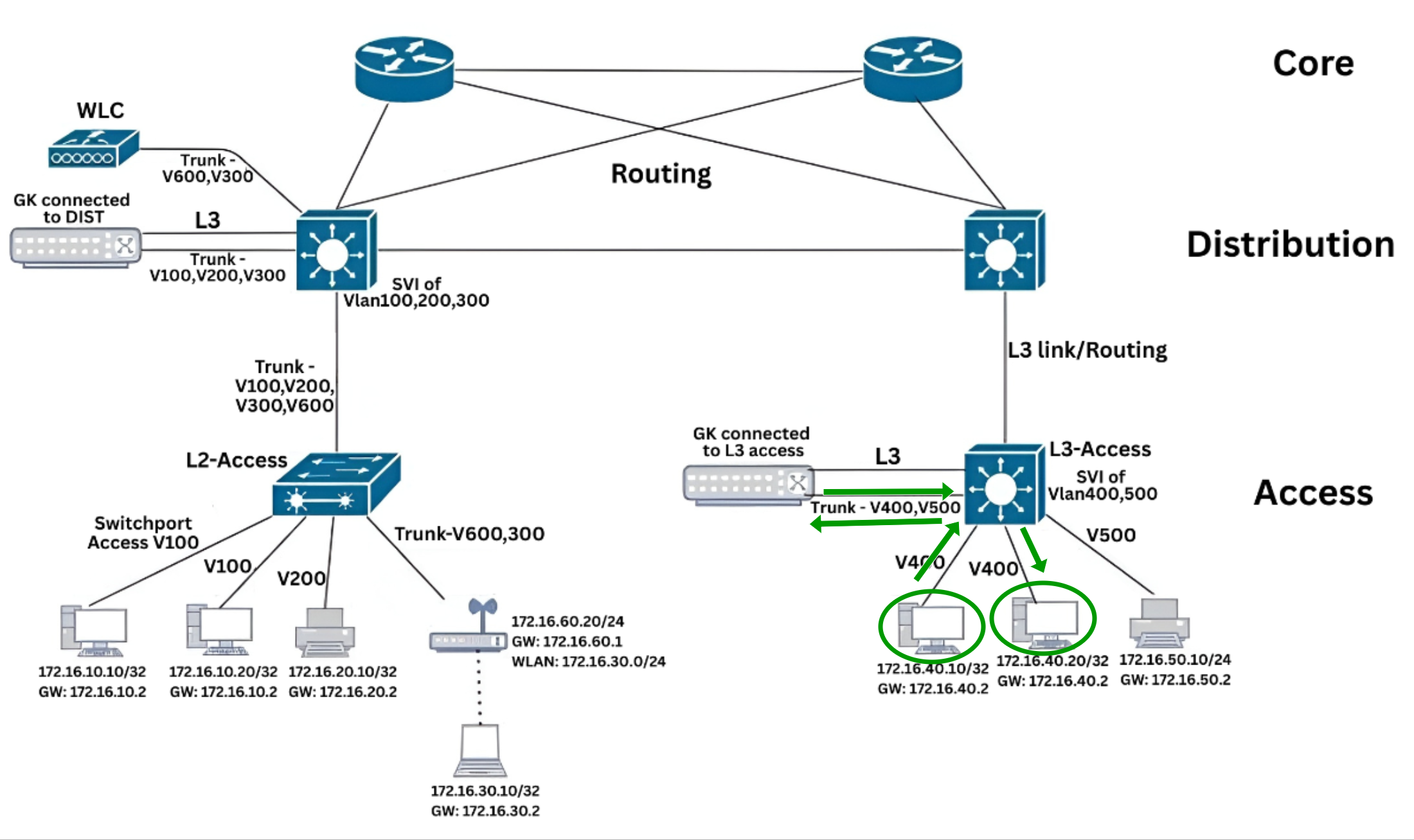

East-West Traffic (Intra-VLAN Communication) with /32 subnet mask: When devices in same VLAN need to communicate (with both of them configured with /32 subnet mask).
172.16.40.10/32:<Ephemeral> → L3 AS → (172.16.40.2) GK LAN → L3 AS → 172.16.40.20/32:8443
172.16.40.20/32:8443 → L3 AS → (172.16.40.2) GK LAN → L3 AS → 172.16.40.10/32:<Ephemeral>

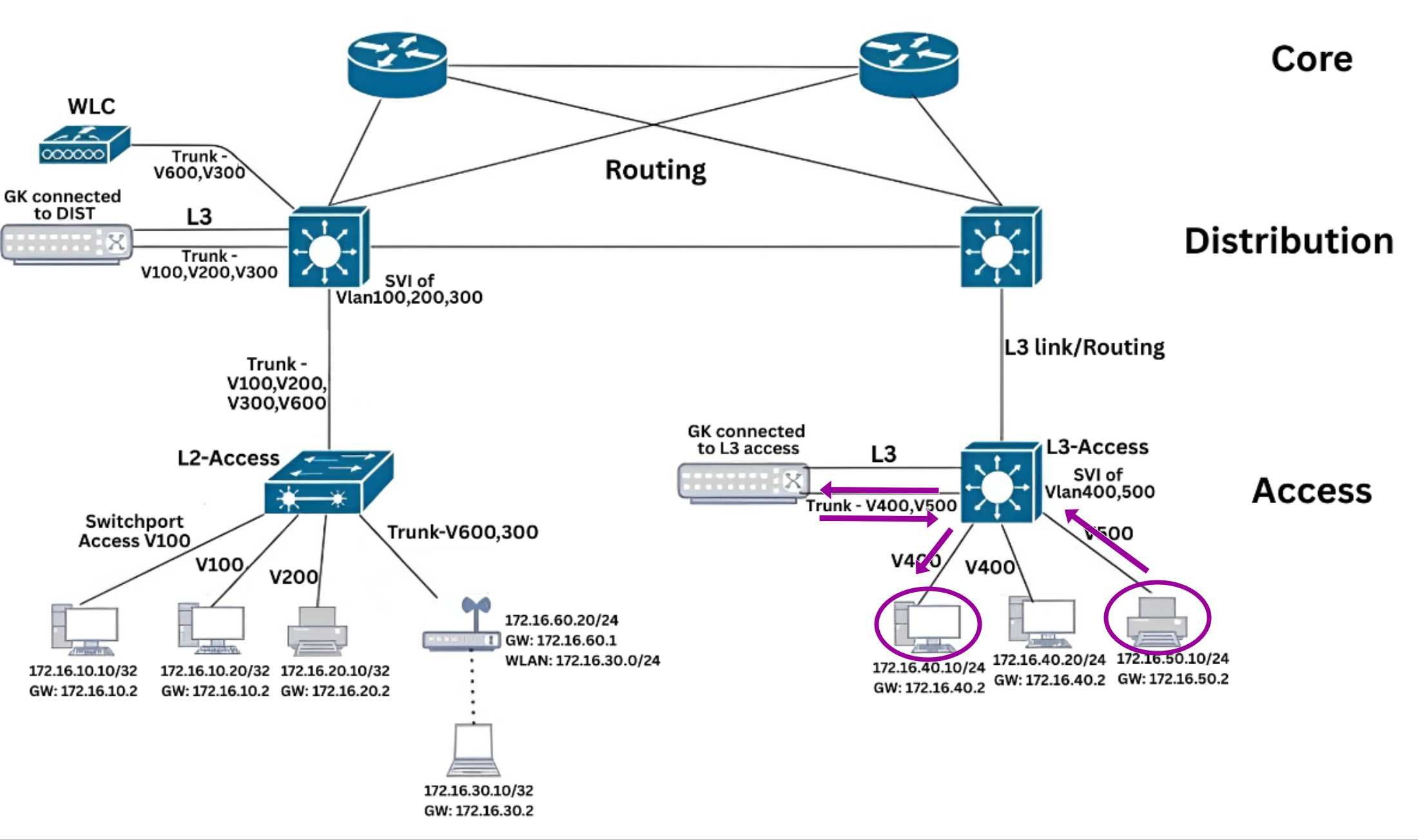

East-West Traffic (Inter-VLAN Communication): When devices in different VLANs need to communicate.
172.16.40.10/24:<Ephemeral> → L3 AS → (172.16.40.2) GK LAN (172.16.50.2) → L3 AS → 172.16.50.10/24:8443
172.16.50.10/24:8443 → L3 AS → (172.16.50.2) GK LAN (172.16.40.2) → L3 AS → 172.16.40.10/24:<Ephemeral>

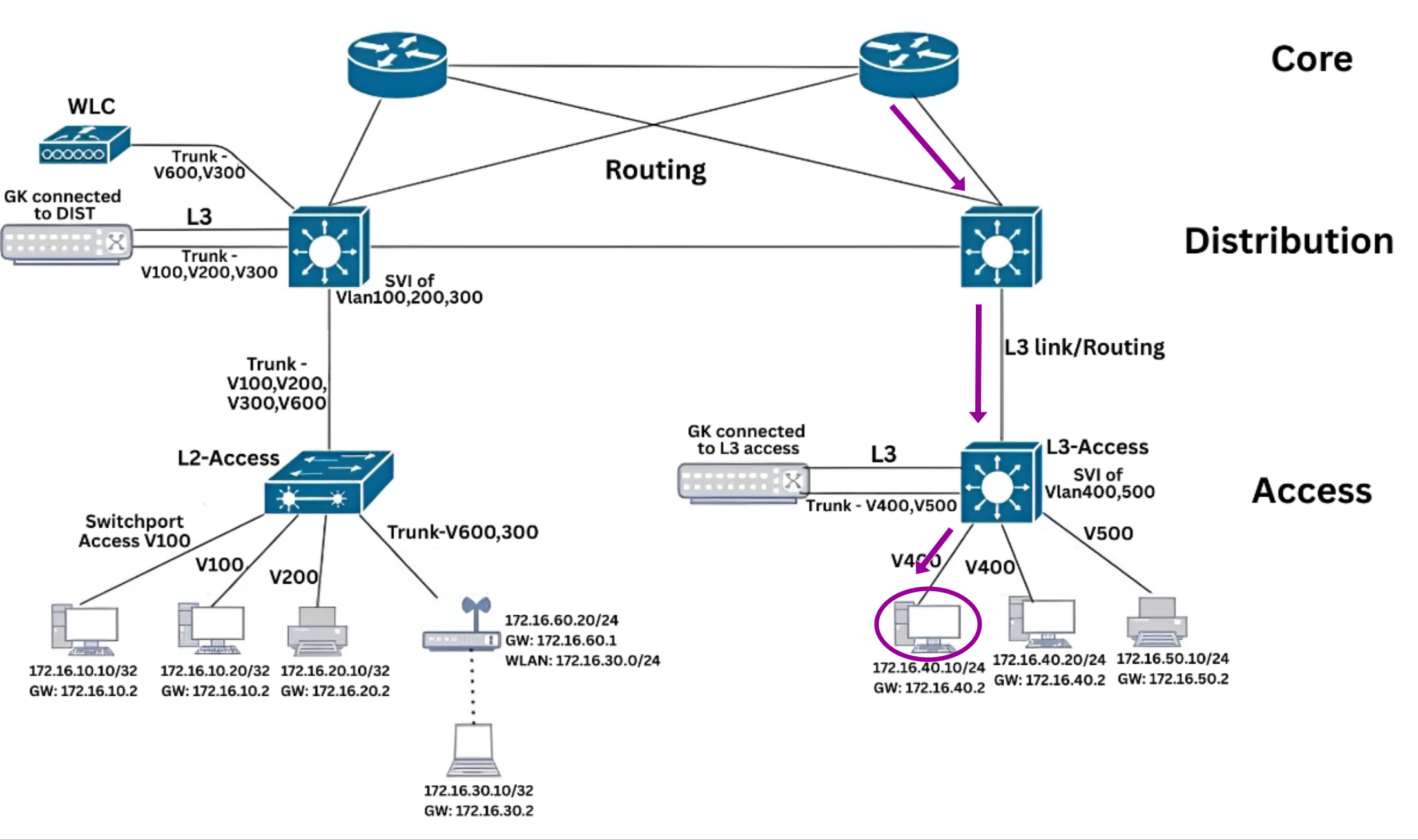

North-South Traffic (External Communication): When device need to communicate with the external network.
172.16.40.10/24:<Ephemeral> → L3 AS → (172.16.40.2) GK LAN → GK WAN → L3 AS → L3 DS → Core → 8.8.8.8:53
8.8.8.8:53 → Core → L3 DS → L3 AS → 172.16.40.10/24:<Ephemeral>

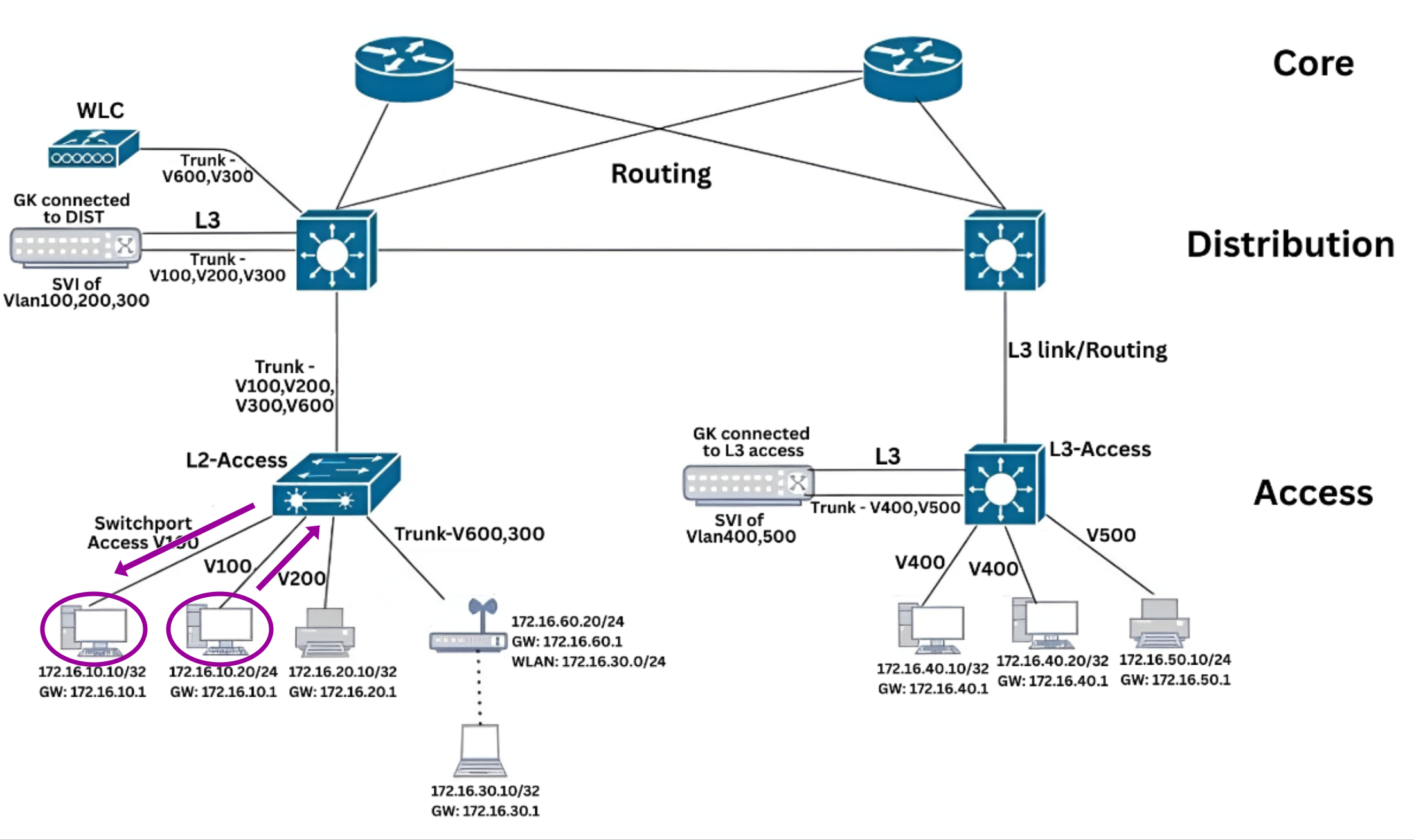

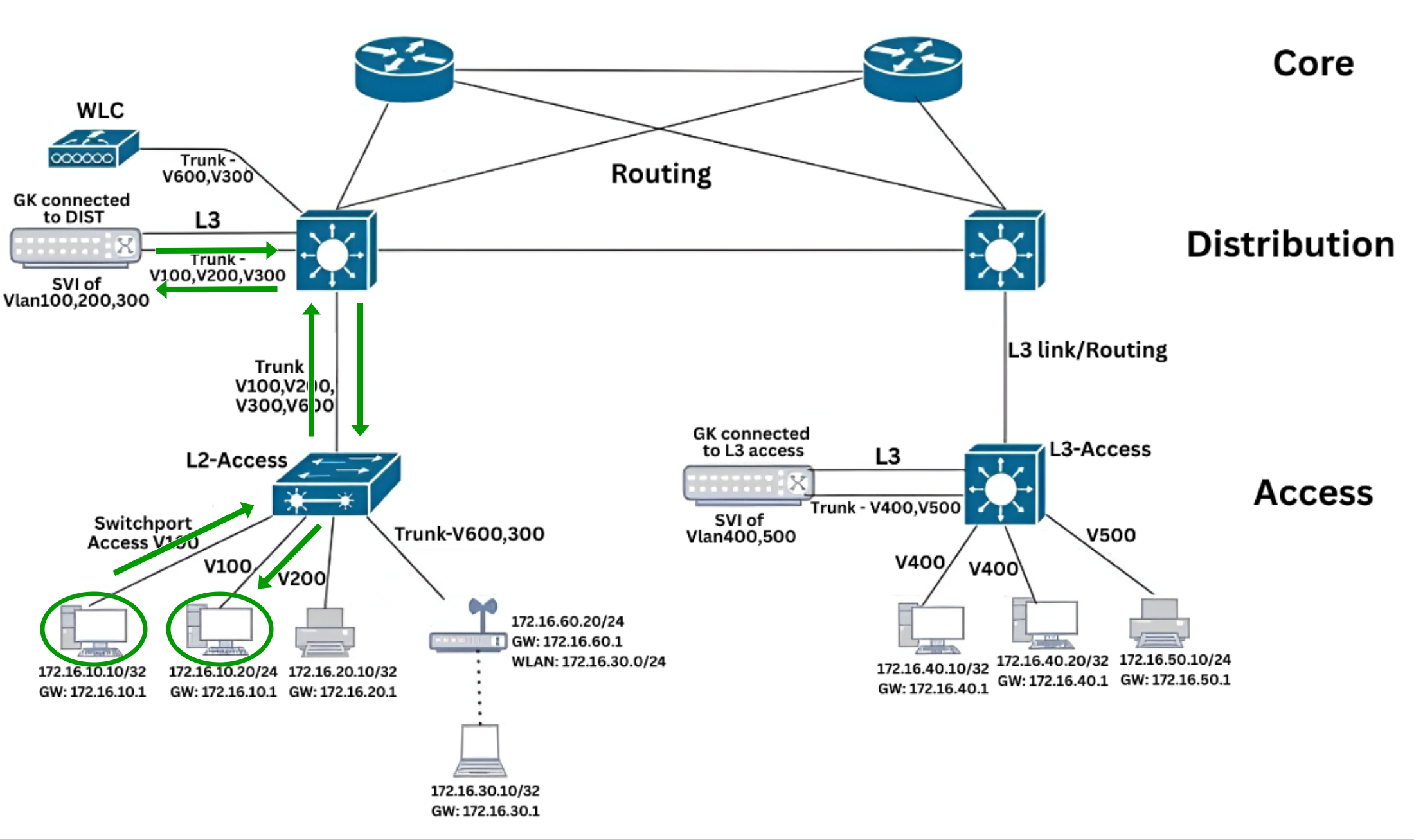

Note: In case if one device is configured with /32 subnet mask and another with /24 subnet mask, then though the Gatekeeper is configured as in symmetric mode, the traffic flow in such case would be asymmetric as shown below.
Consider device 172.16.10.10/32 wants to talk to 172.16.10.20/24.
172.16.10.10/32:<Ephemeral> → L2 AS → L3 DS → (172.16.10.1) GK LAN → L3 DS → L2 AS → 172.16.10.20/24:8443
172.16.10.20/24:8443 → L2 AS → 172.16.10.10/32:<Ephemeral>
