On-Premise PoC Deployment Guide for Gatekeeper

This guide is intended only for Proof-of-Concept (PoC) deployments of Gatekeeper on an on-premises environment. It is not suitable for production use.

Important Notice​

  • This is a single-VM deployment (one Xshield and one Gatekeeper) with no redundancy.
  • The PoC supports securing up to 15 assets only.
  • Intended strictly for evaluation of the Xshield platform and Gatekeeper in on-prem environments.

Pre-requisites​

Ensure that you have the following resources available to deploy the VM:

  • 8 vCPU
  • 32 GB RAM
  • 256 GB Disk

Platform Deployment Options​

Important Follow this doc to deploy Xshield management platform in an on-premise environment POC deployment guide.

There are 3 options for installing Xshield management platform on-premise:

  1. IP-Based Deployment (HTTP) – Default
  2. Domain-Based Deployment with trusted root
  3. Custom Domain with imported certificate

Choose the appropriate option based on your requirements

If using Domain Based Deployment:​

colortokenspoc.com is the recommended domain. It is recommended you do not take the random generated sub-domain for ease of use/typing.

Gatekeeper Deployment Steps​

1. Create the VM​

Deploy the OVA (link above)

2. Configure Network​

The OVA will obtain an address via DHCP

It is highly recommended you assign an IP address:

Manually configure static IP, DNS, and gateway:

cd $HOME/onprem-infrastructure/single-node
bash setup-static-ip.sh

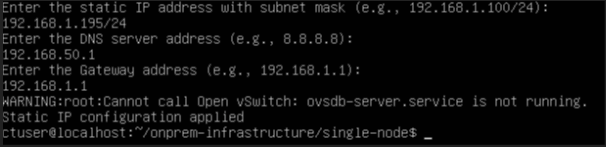

Setup Static IP

As of 7/25/2025, you must enter gateway and DNS server even if none exist.

3. SSH Into the VM​

Default credentials:

Username: ctuser
Password: colors321

Gatekeeper Configuration for On-Premise​

On boot up, you must change the admin password. Ensure that you save this in a safe place. It must be a complex password:

  • Non-dictionary word
  • 8 or more characters
  • Upper and lower case letters
  • At least 1 number
  • At least 1 special character

The menu is then displayed. If you ever need to exit the menu system, the command to get back to the menu from the command line is ctconfig. It must be entered as superuser:

sudo ctconfig

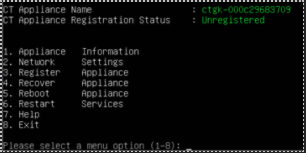

CLI Setup Home Screen

Step 1 - Assign Appliance Name and IP​

Select menu item 1. Appliance Information Configure a meaningful name for the gatekeeper appliance it will be used in the management interface.

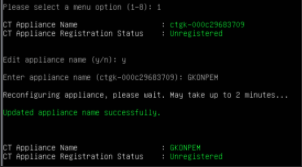

Assign Appliance Name

Enter the static IP address you determined in POV prep. As of 7/25/2025, the gatekeeper must have a reachable gateway address even if the gatekeeper and XShield are on the same subnet. A DNS entry is needed even if there is no DNS.

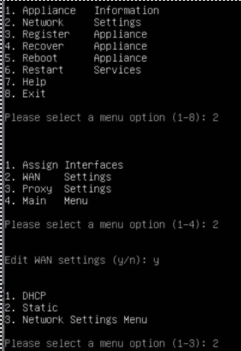

Assign Static WAN Settings Menu

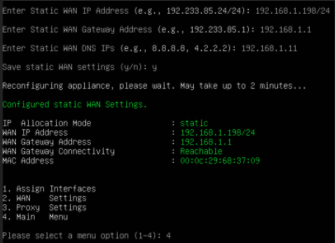

Assign Static WAN Settings

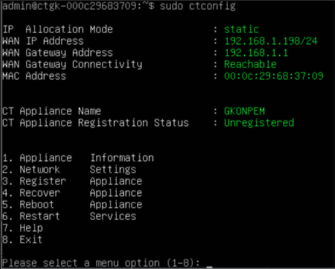

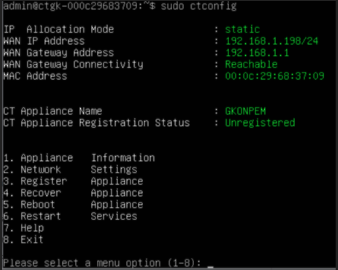

CLI Setup Main Menu After Adding Settings

Validate the information displayed

Step 2 - Register the Appliance​

Select menu item 3. Register Appliance

Register Appliance

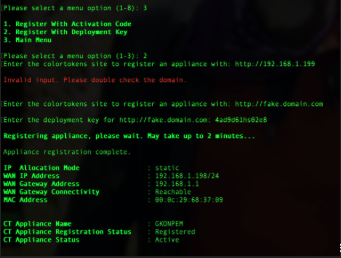

IP Based Deployment: Enter the IP address as Colortokens site during registration. Use a dummy domain name. Register Appliance

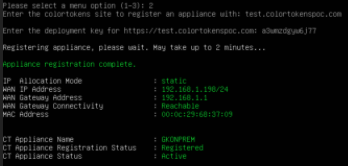

Domain Based Deployment:

Register Appliance

The deployment key is found in the Xshield UI.

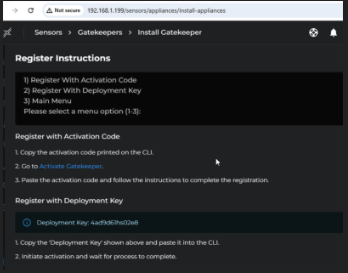

Deployment Key UI

The gatekeeper configuration can follow the traditional documents from here: Gatekeeper Deployment Guide.

Troubleshooting​

Run the below script to check the cluster/services health if experiencing any issues:

cd $HOME/onprem-infrastructure/single-node
bash status.sh

For detailed troubleshooting information, refer to the PoC deployment guide.
